Cement render came off this late Georgian villa first, back to bare brickwork, and airtightness tape went round every window frame before any board was fixed.
Steico wood fibre boards then went onto all the external walls. The detailing is where the time went: boards chamfered at the top and capped with lead flashing, insulation worked around the hopper and downpipe before they were refitted, timber sills insulated and fitted, and a grey mosaic render on the plinth. The finish is an antique white breathable silicone render.

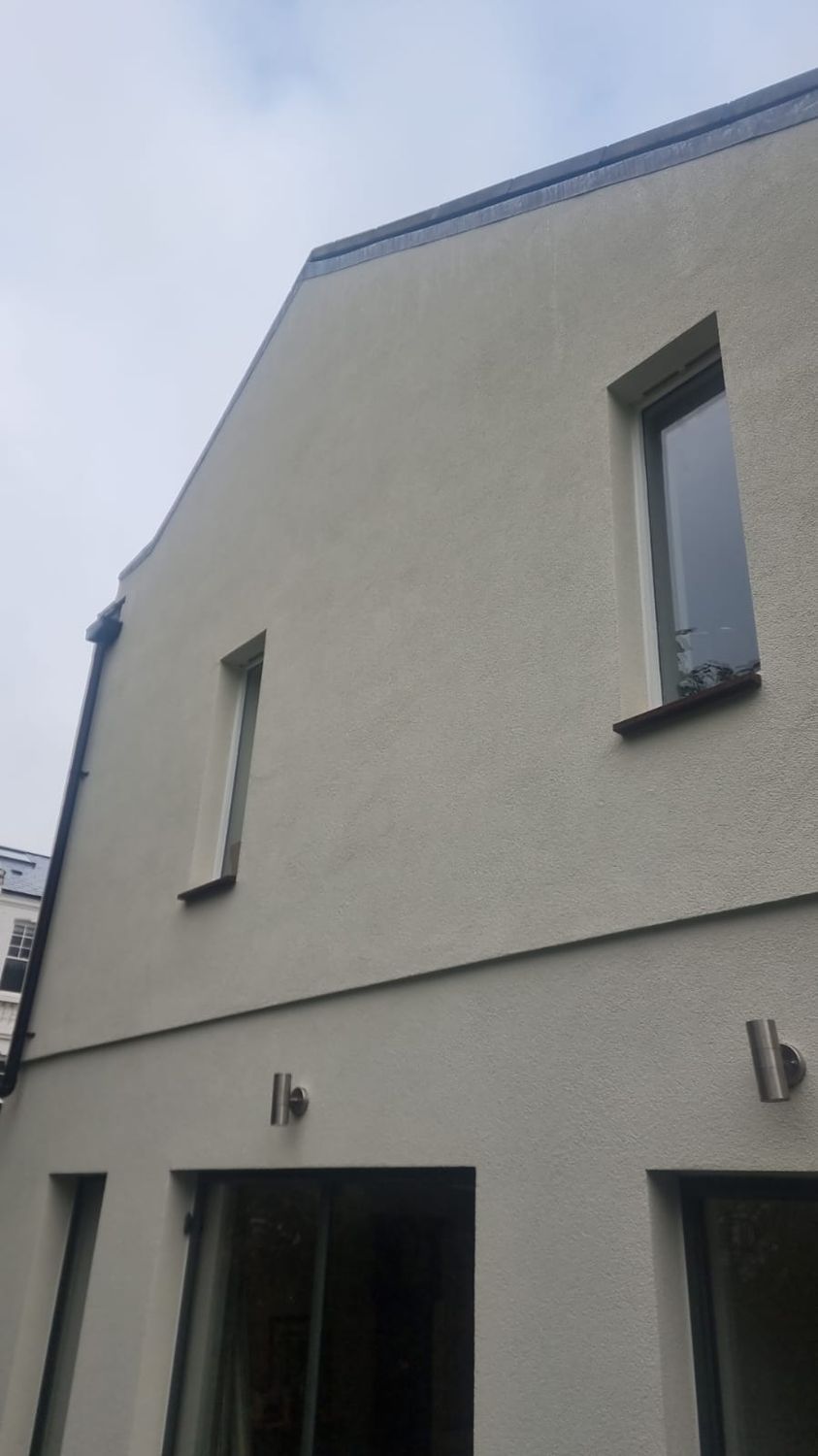

External wall insulation with wood fibre insulation boards & breathable silicone top render

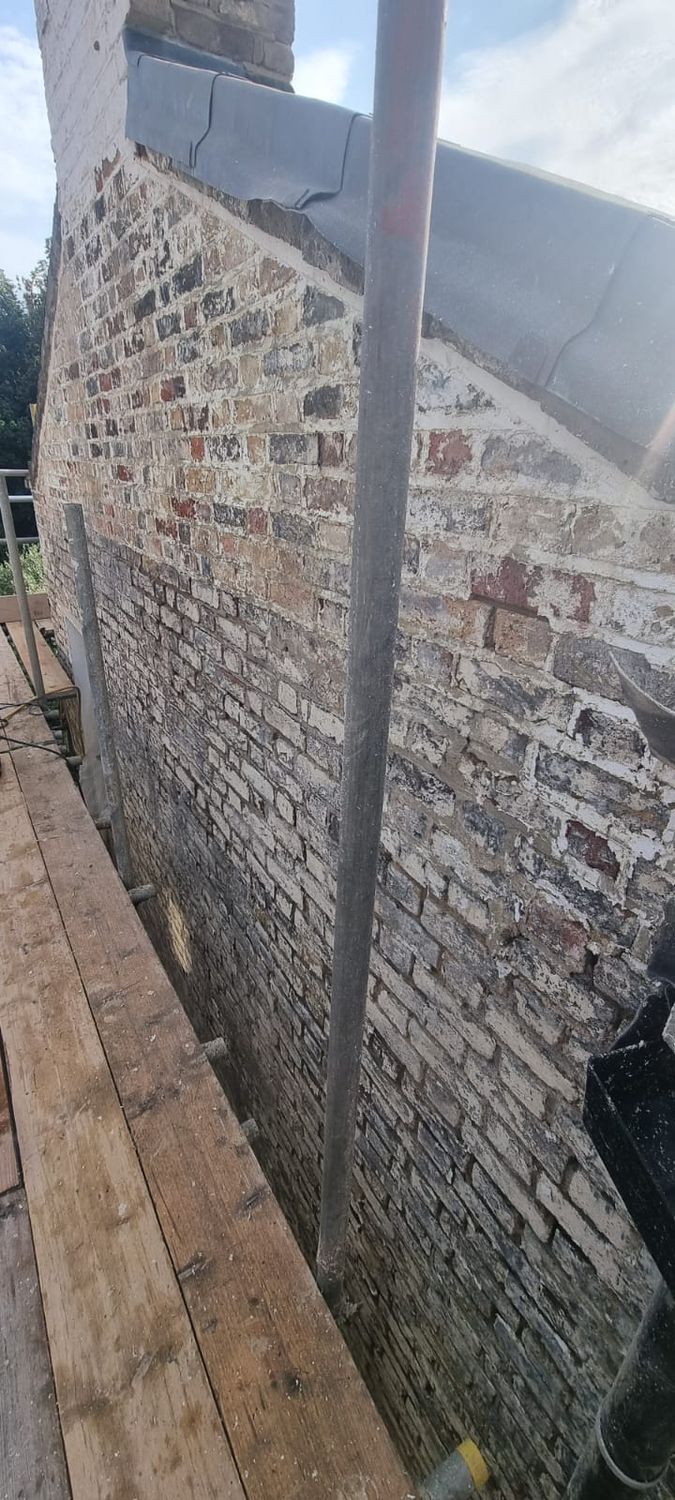

Preparation- cement render taken back to bare brickwork

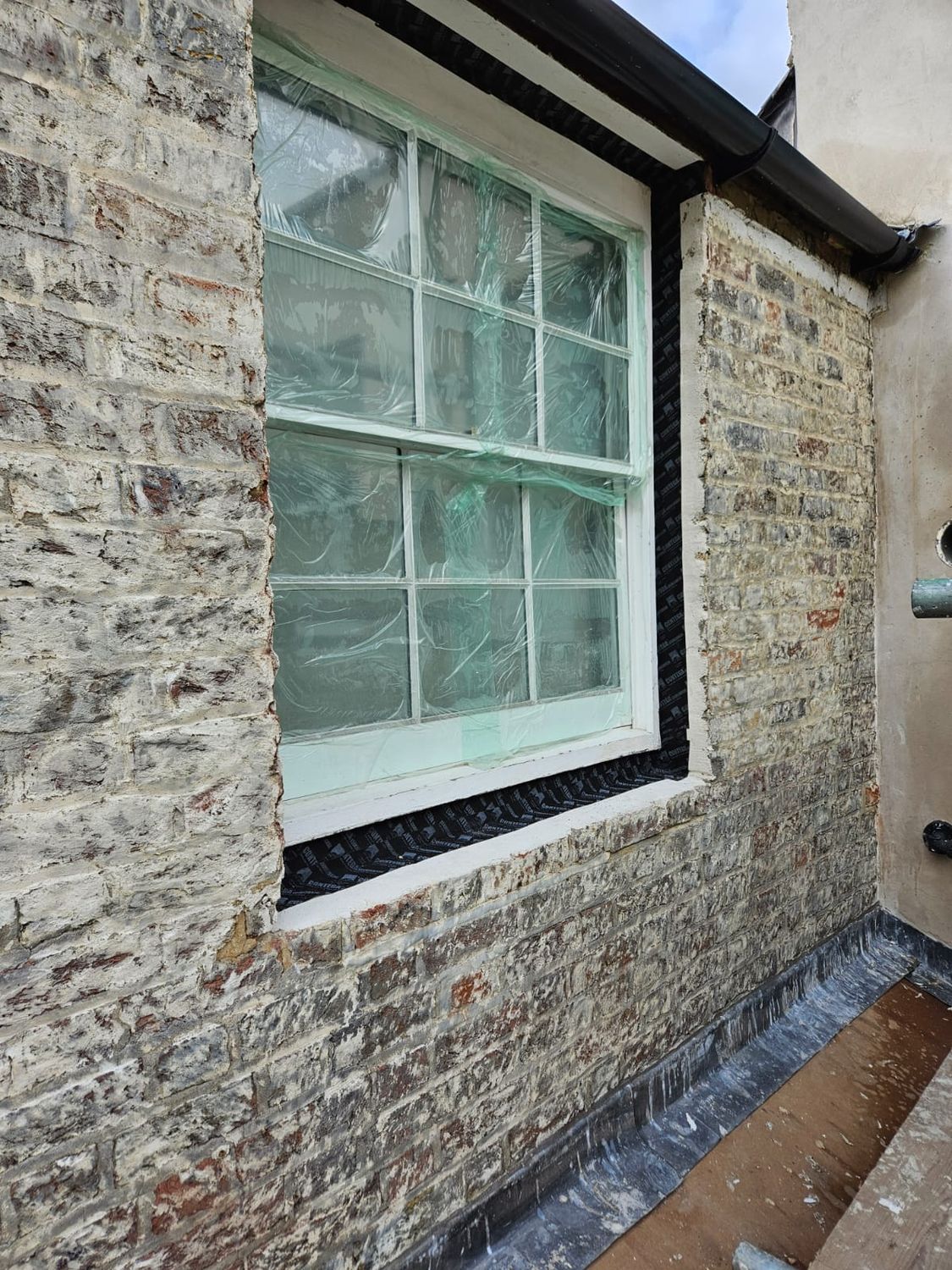

Preparation - airtightness tapes fitted around window frames

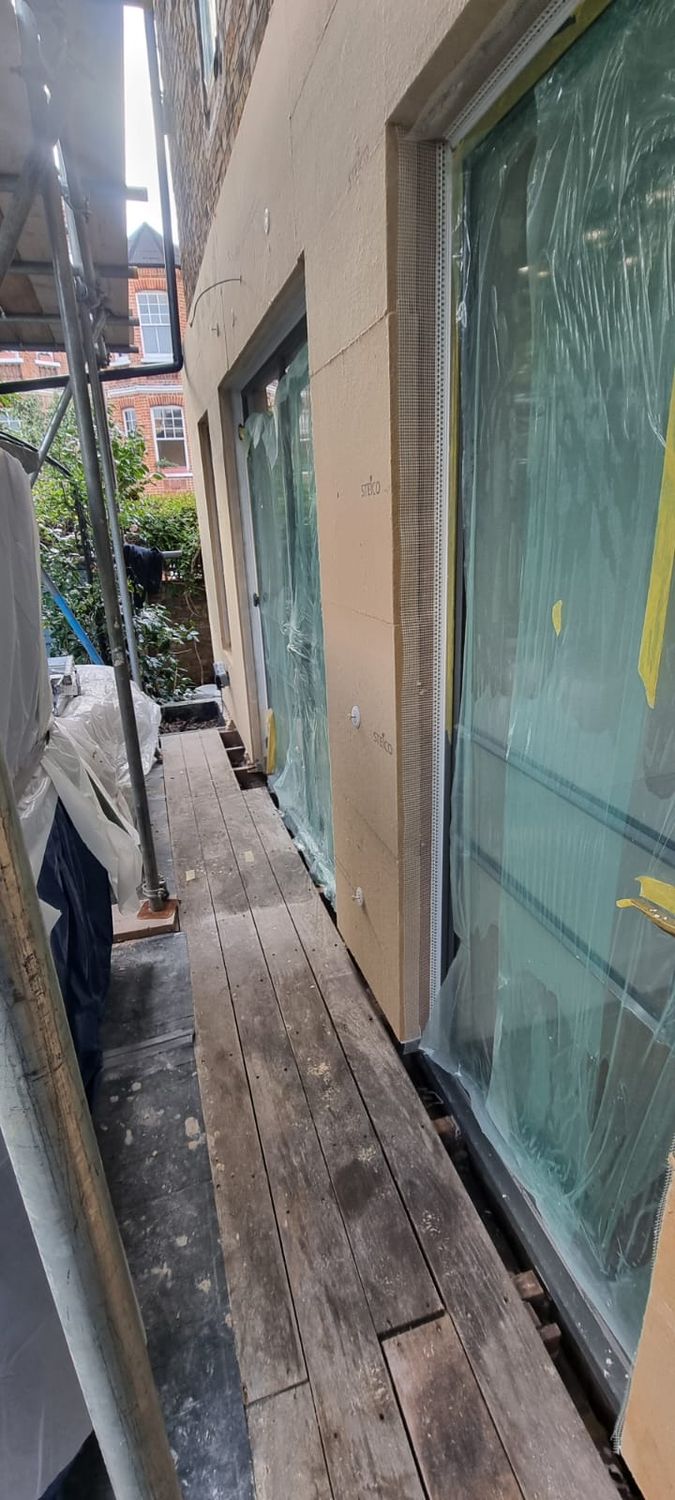

Installation of Steico wood fibre boards onto all external walls

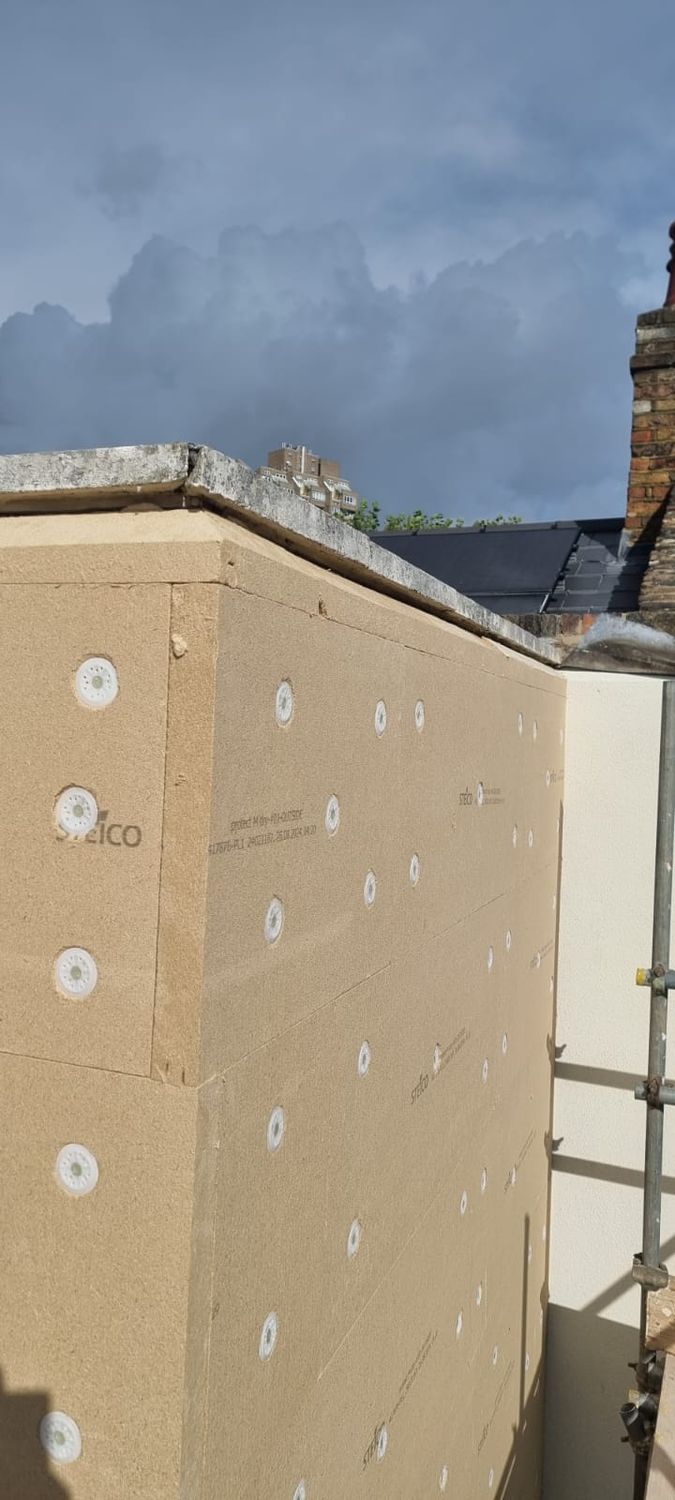

Top of wood fibre boards chamfered on the top of external wall insulation

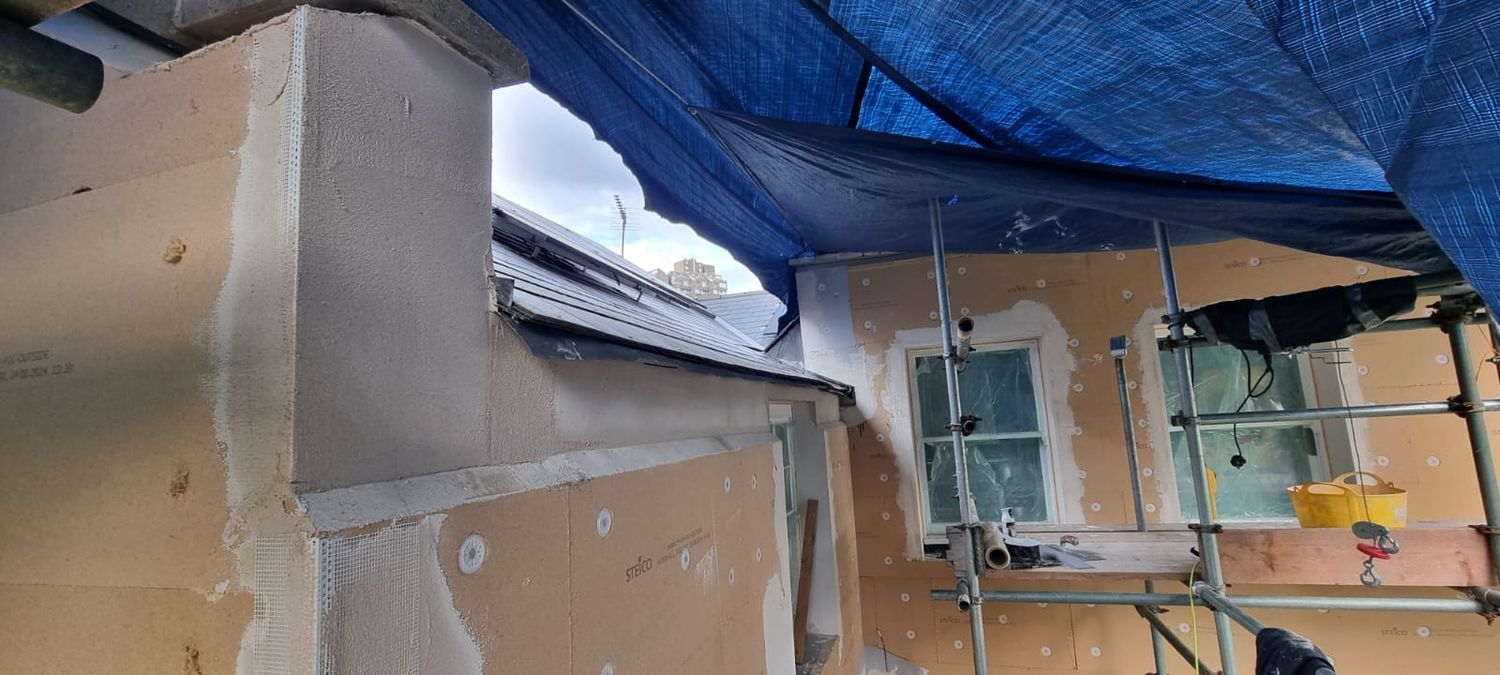

Wood fibre insulation boards installed with intricate detailing in Brixton, London

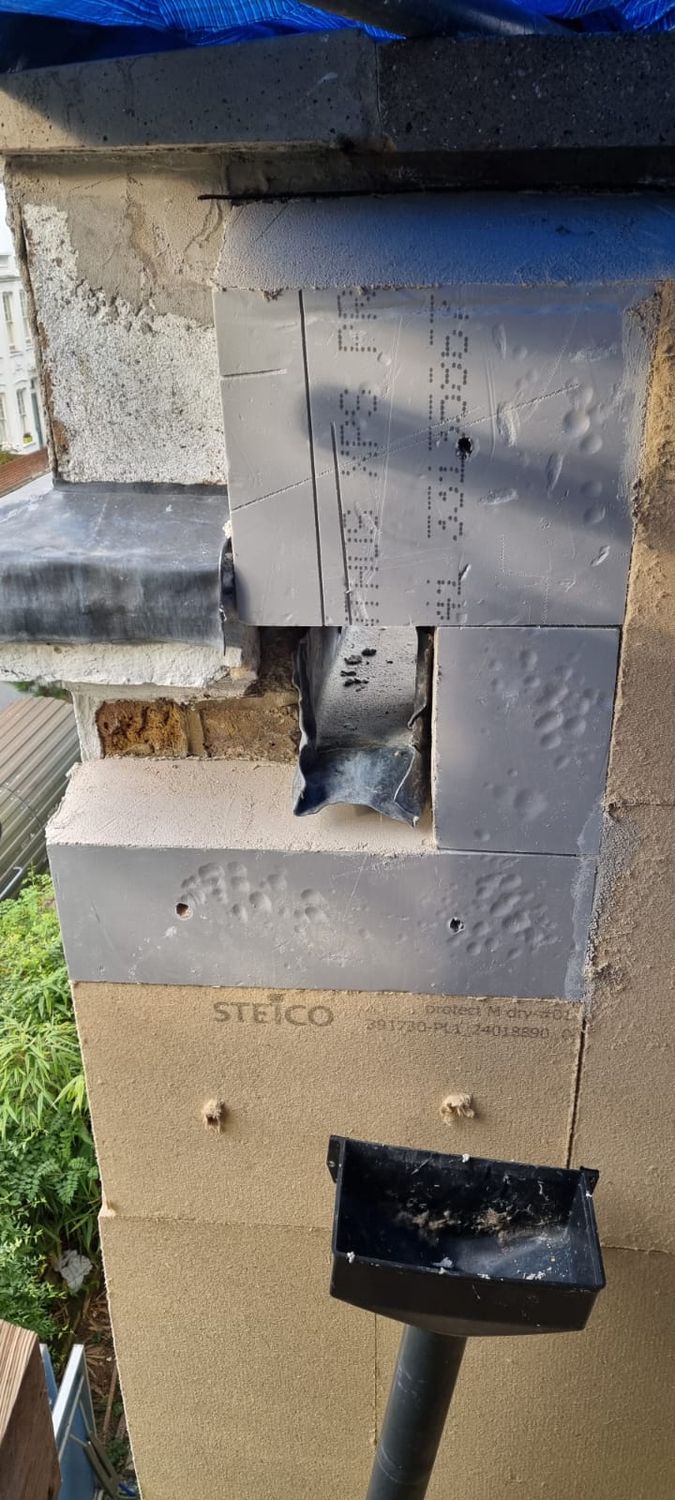

Insulation detailing around hopper and downpipe

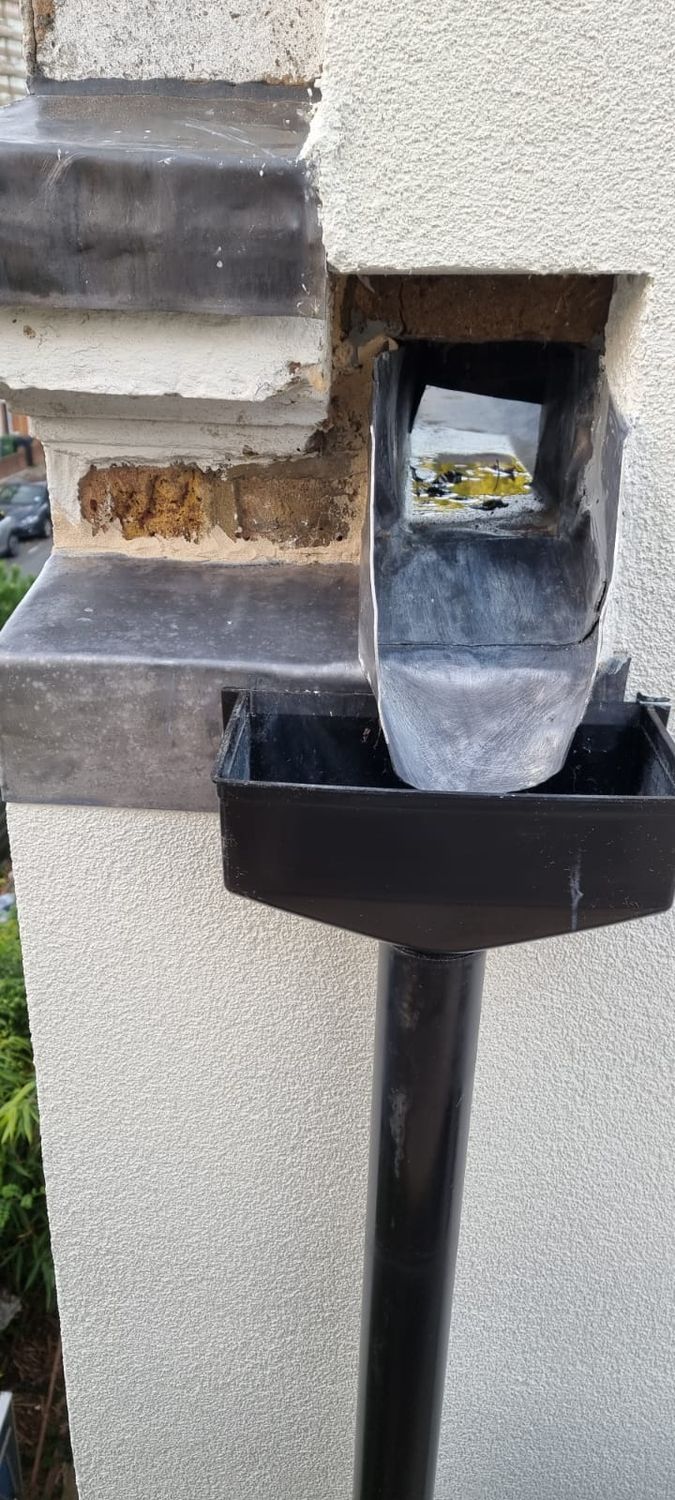

Hopper and downpipe refitted

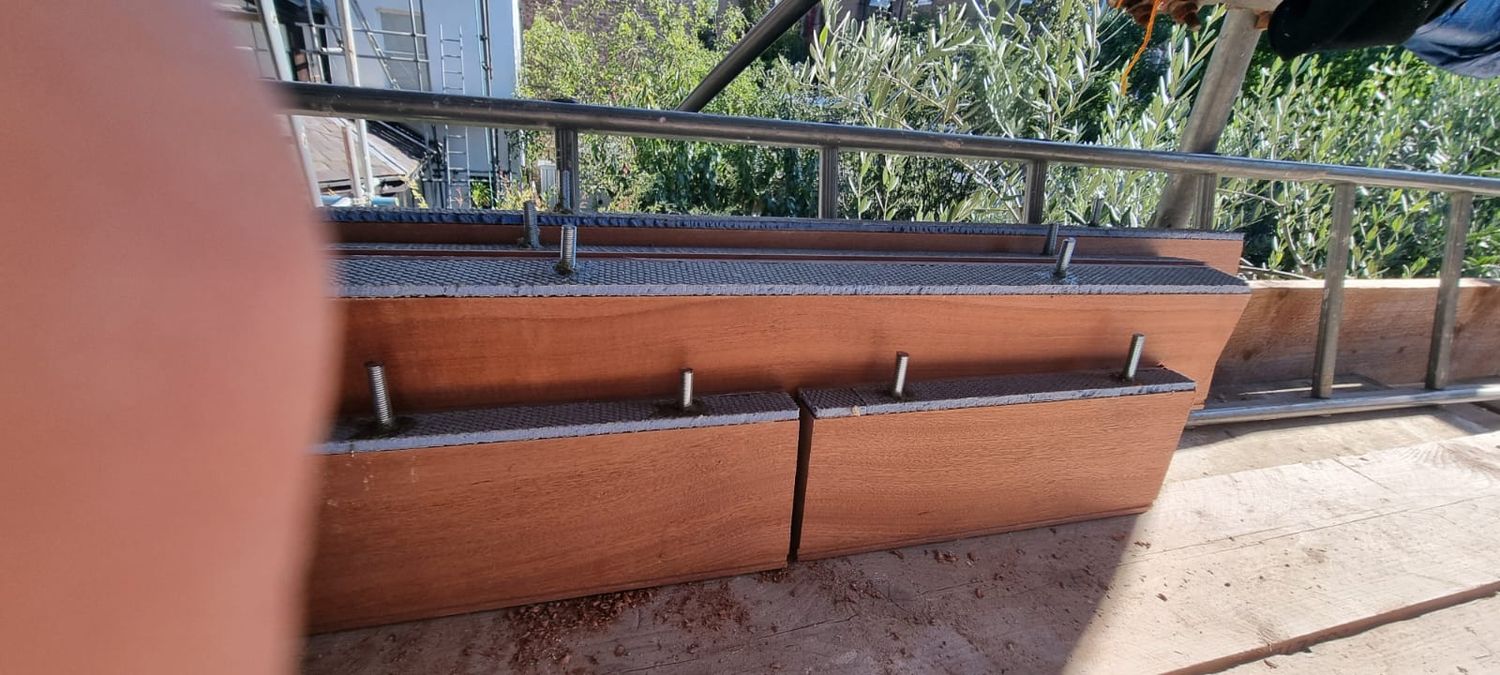

Timber window sills insulated ready for installation

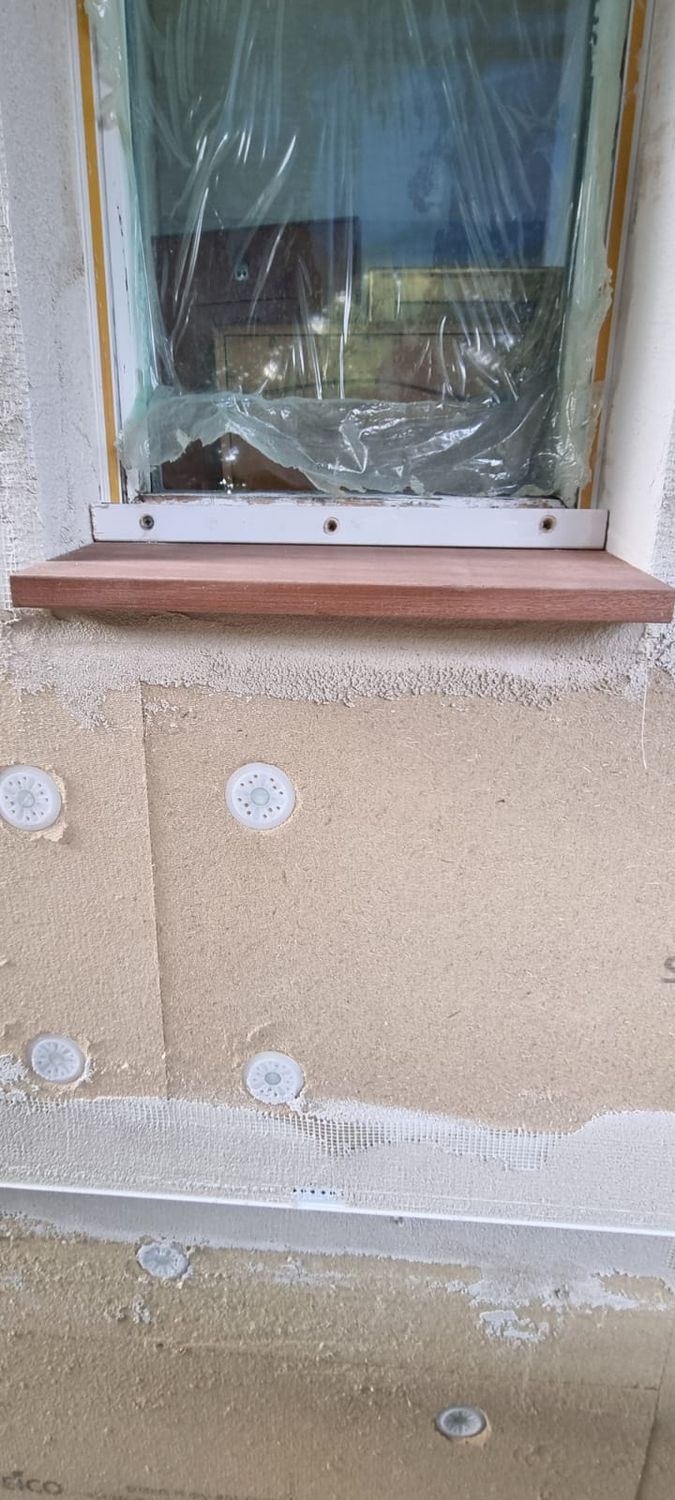

Timber window sill fitted

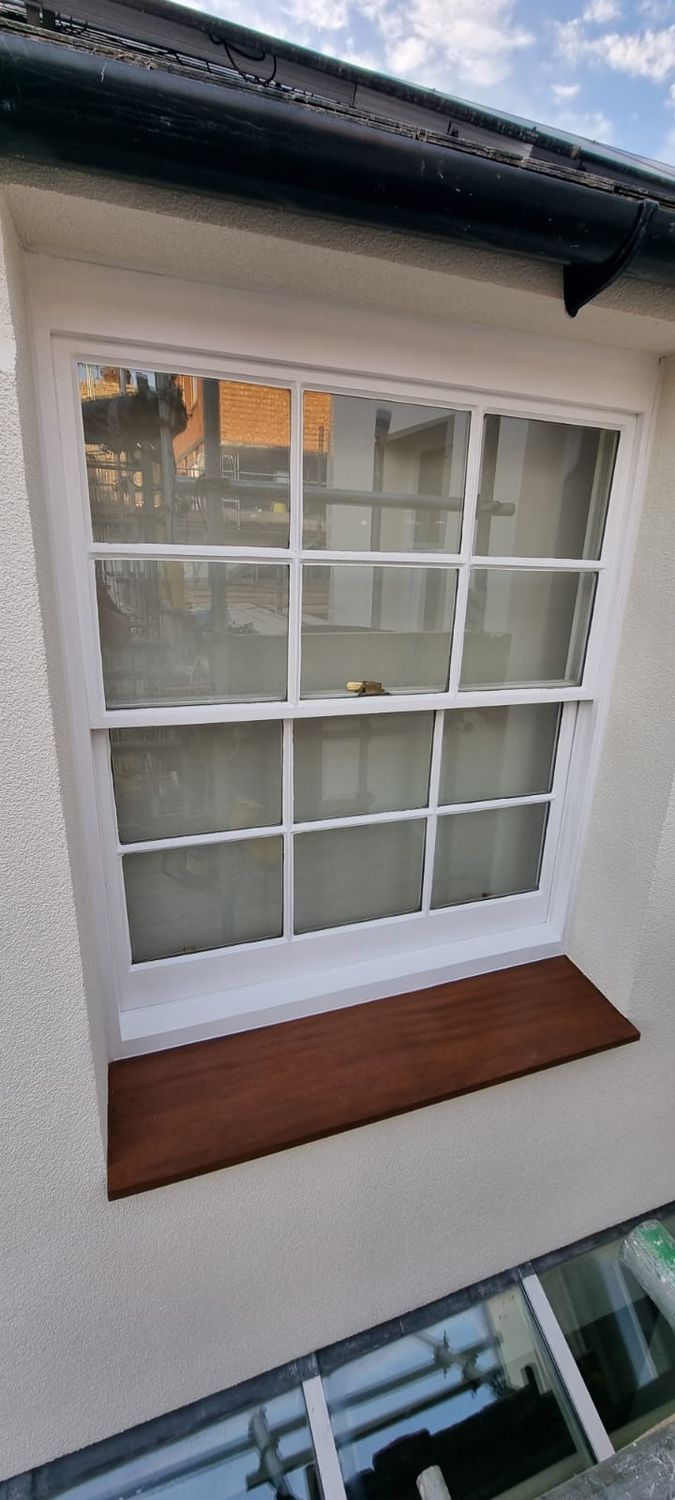

Window frames and sills painted

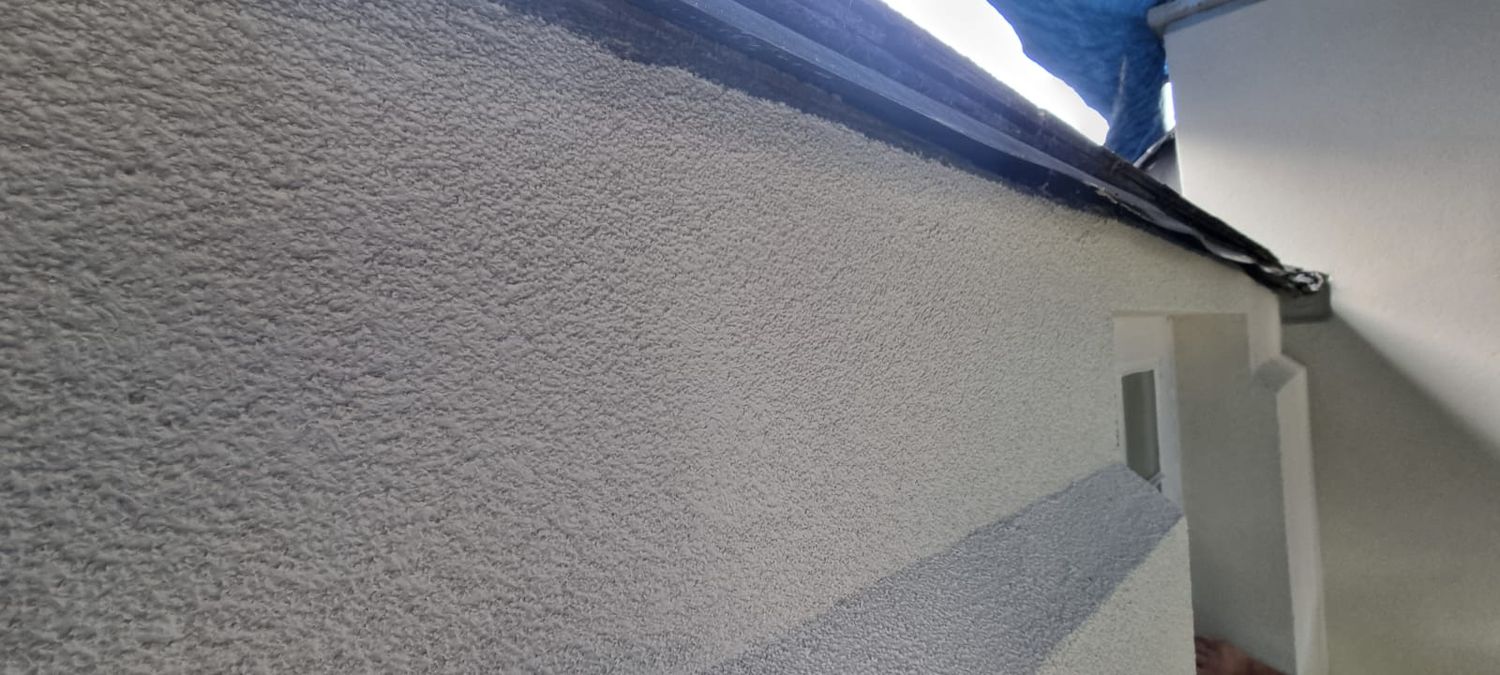

Antique white, breathable silicone render finish

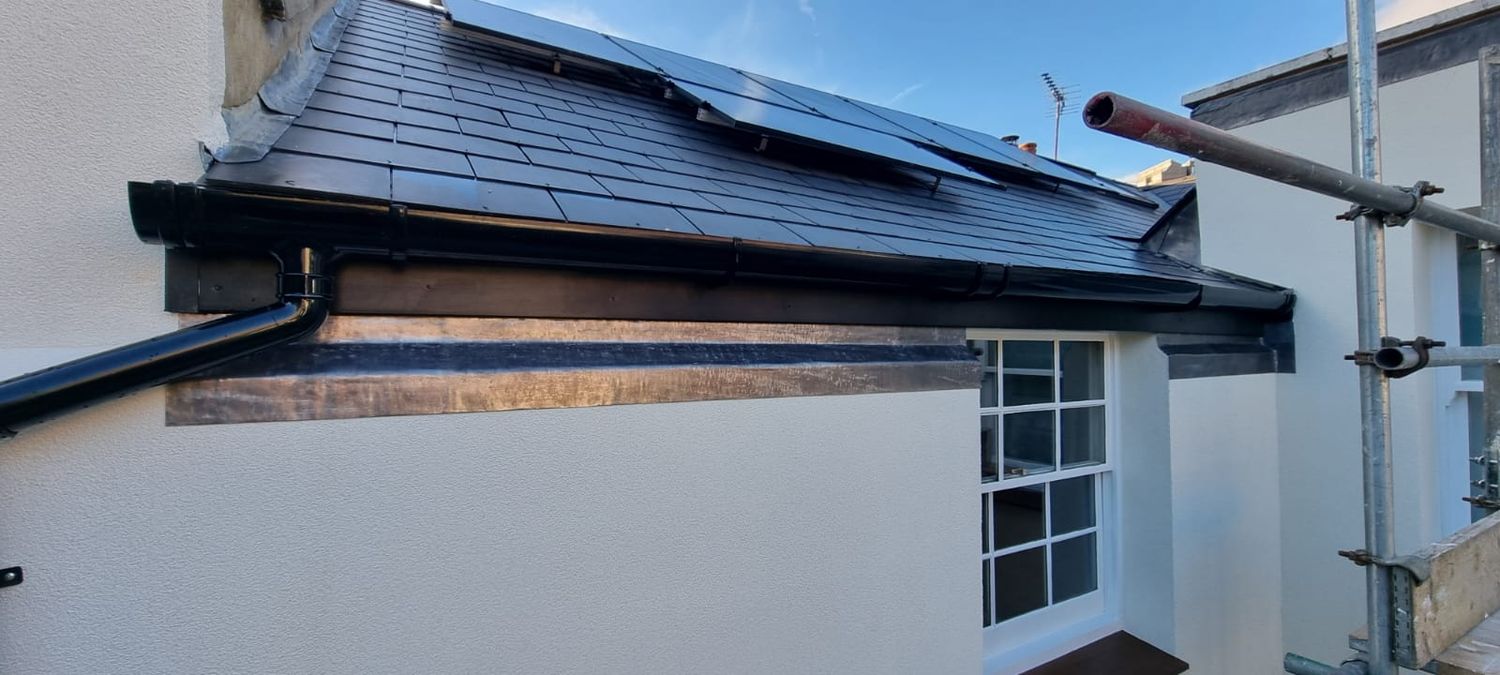

Lead flashing installed at top of wood fibre insulation system and rainwater gutters re-fitted

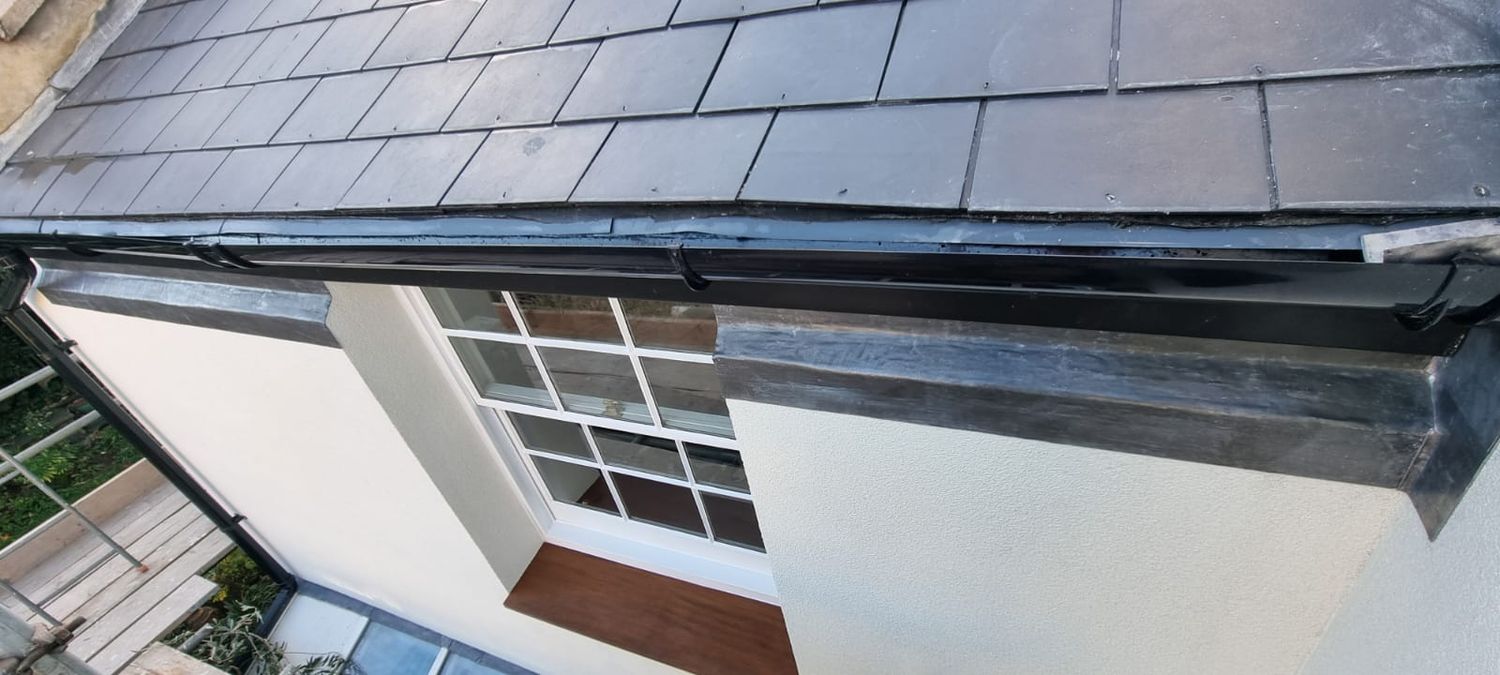

Lead flashing installed over chamfered wood fibre external wall insulation in Brixton, London

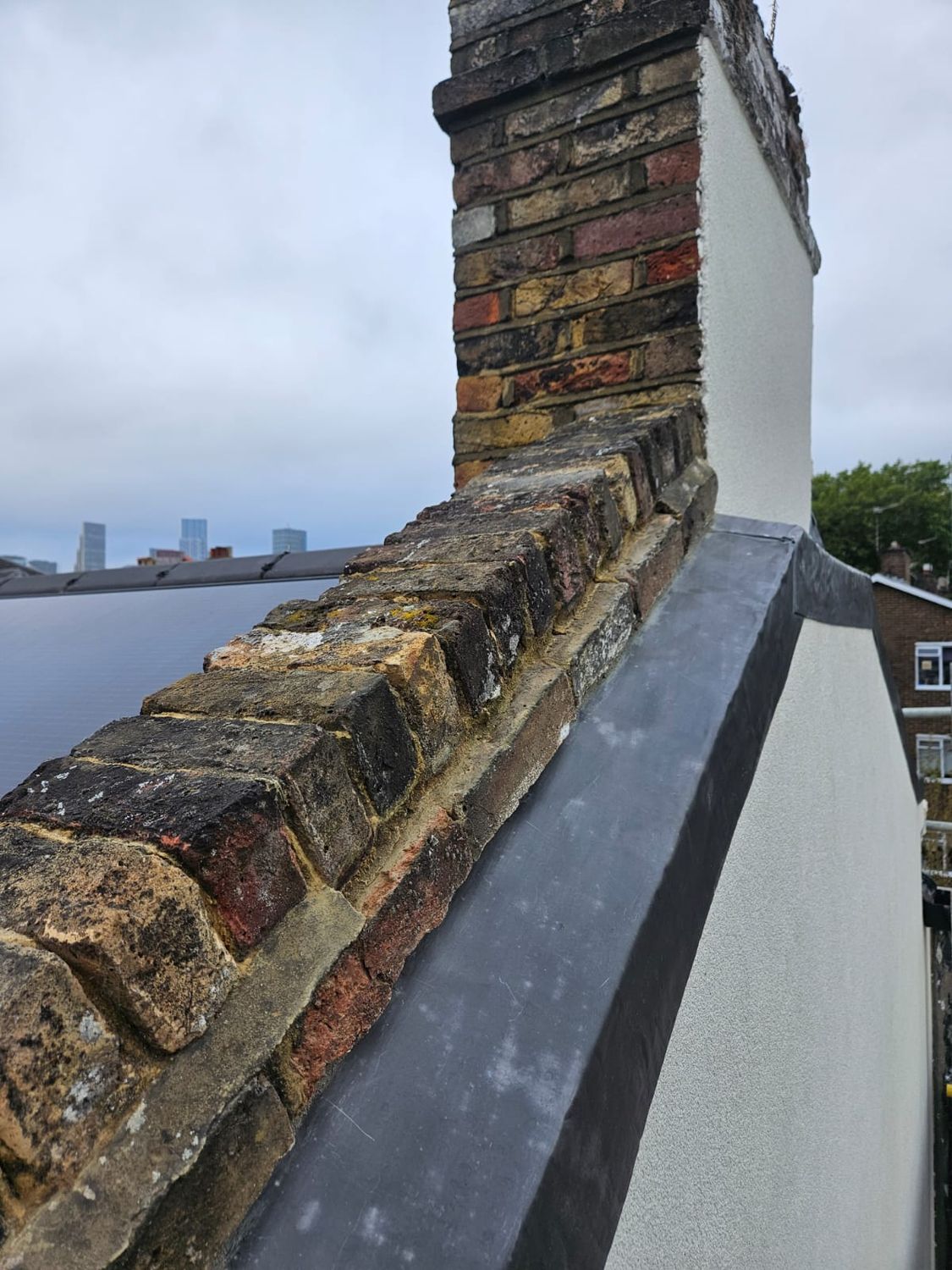

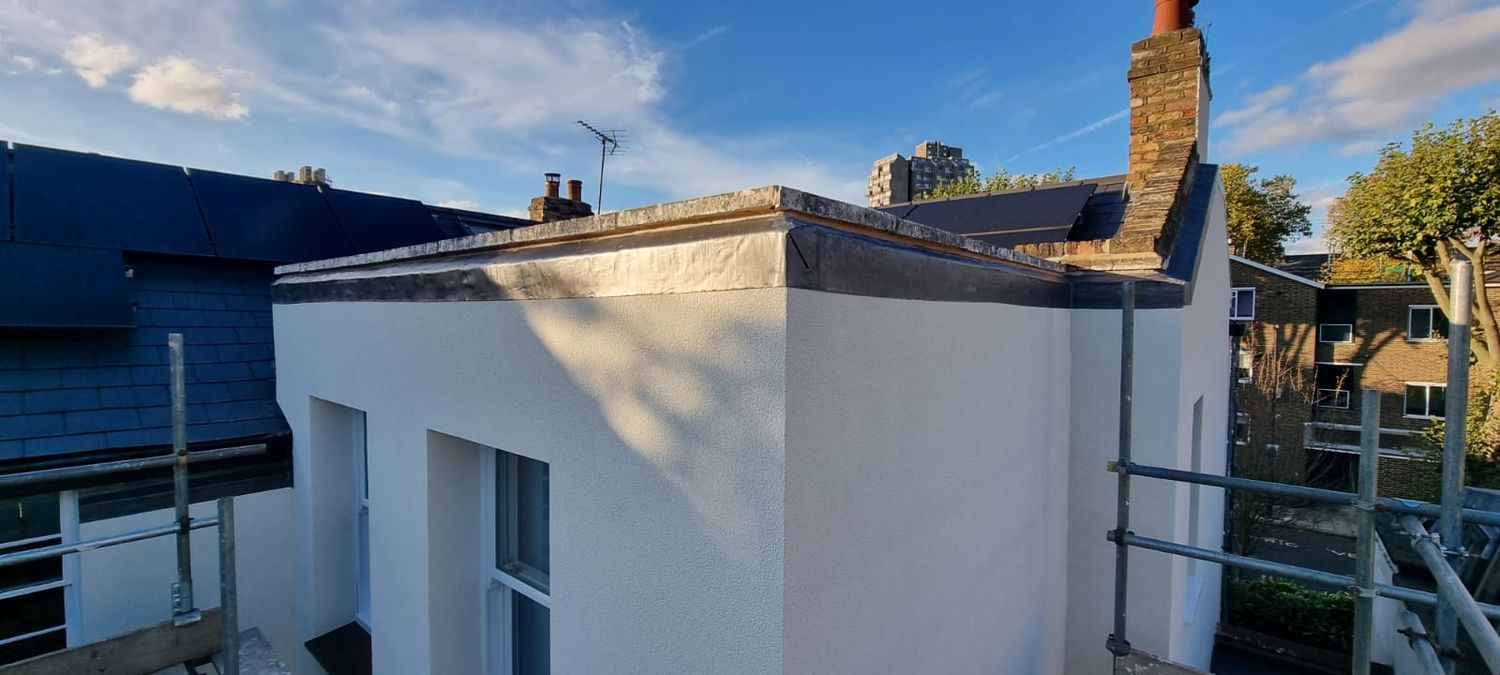

Wood fibre insulation boards chamfered & capped off with lead flashing
Wood fibre insulation boards chamfered & capped off with lead flashing

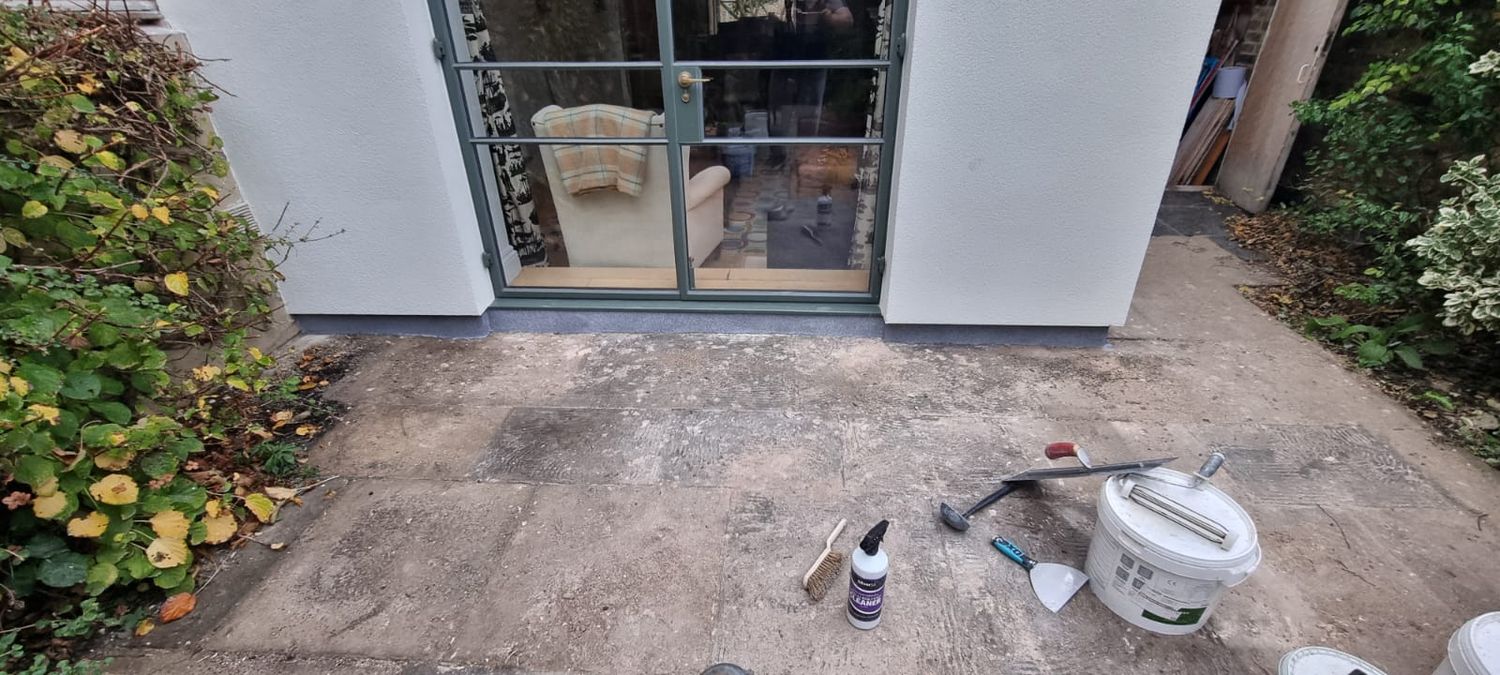

Plinth insulation finished with decorative grey mosaic render
If your walls are solid brick and the render is already failing, taking it off is not the extra job it sounds like. It is the start of the right one.
