Cork is the slow option on a wall like this, because a Victorian rear elevation with a bay window is nothing but details. Every board round the bay and above it was cut to fit.
Pro Clima Contega Solido Exo tape sealed the window frames and reveals before the boards went on, insulation was detailed to carry rainwater away, and the bay roof was rebuilt insulated with new flashing and tape around it. Baumit MC 55 lime base coat went over the cork, then breathable silicone render, with aluminium sills, a white aluminium verge trim capping the top and a black mosaic render on the plinth.

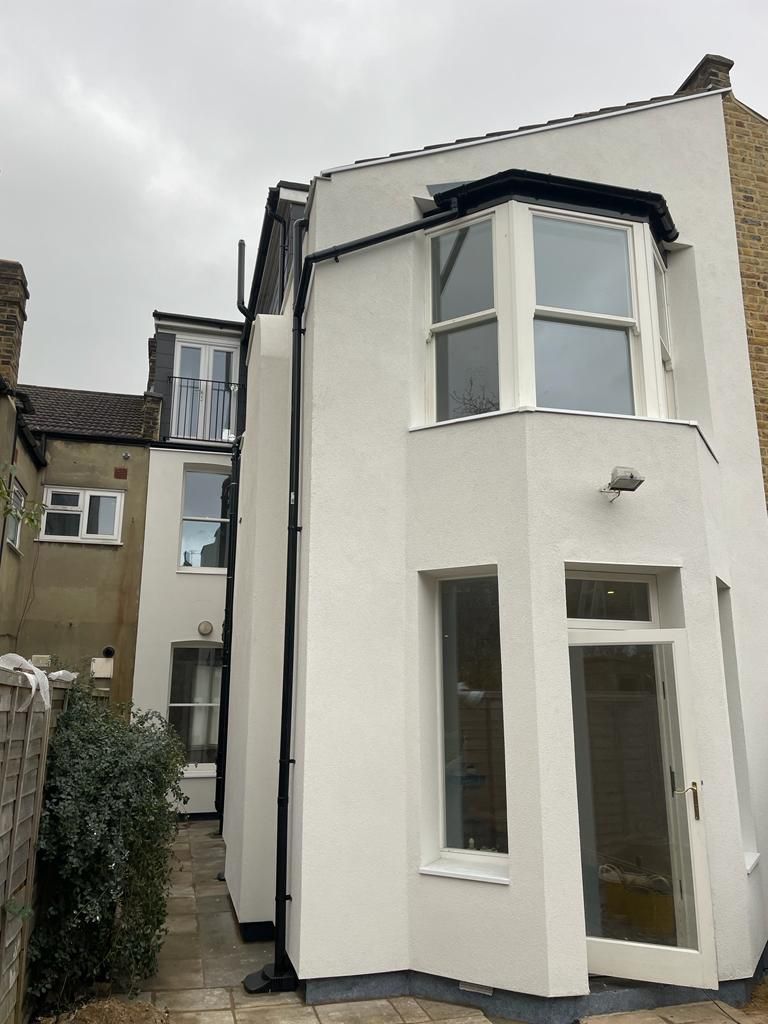

Victorian terraced house in London insulated with cork board external wall insulating system

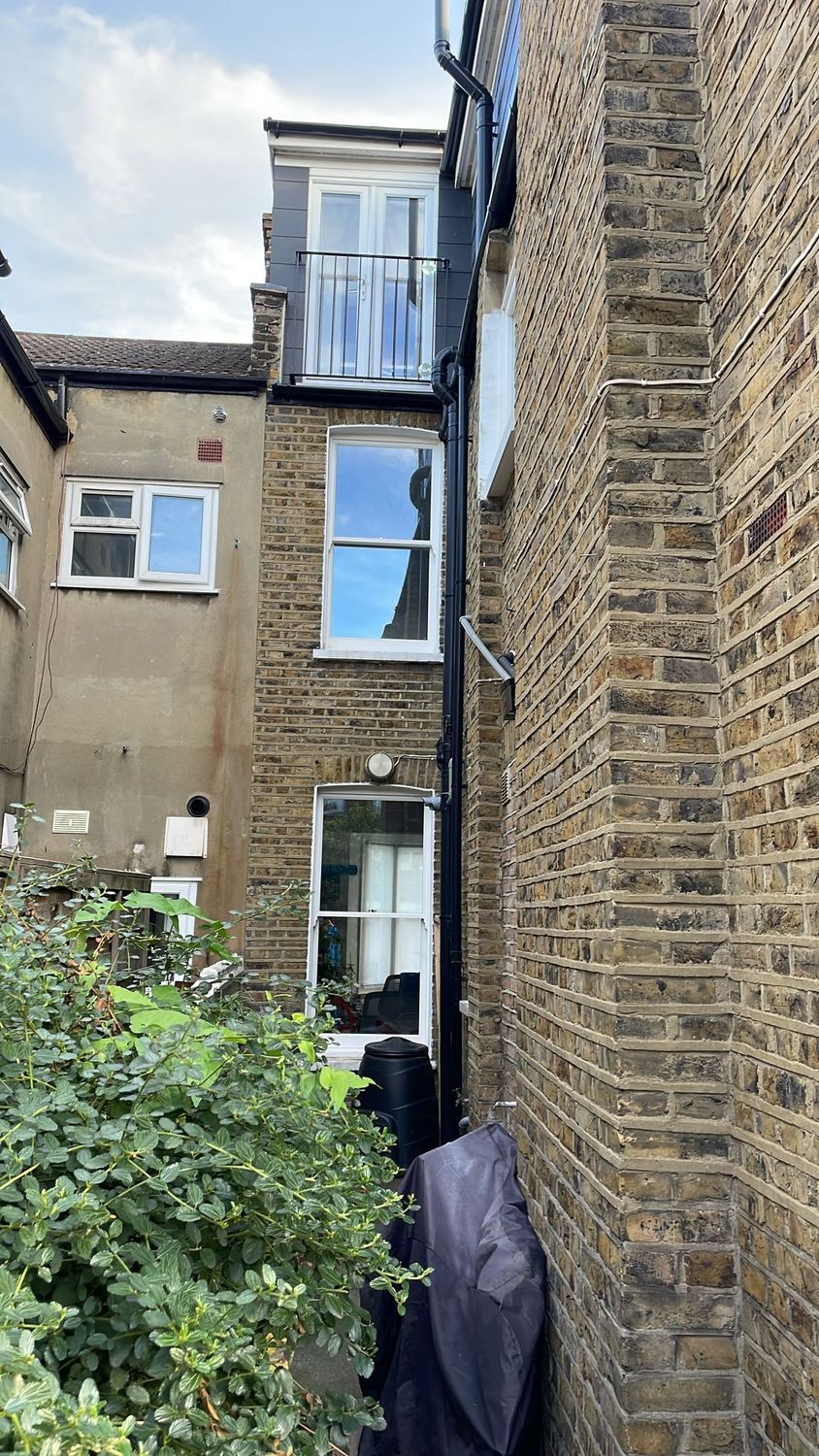

Rear and side masonry walls before insulation

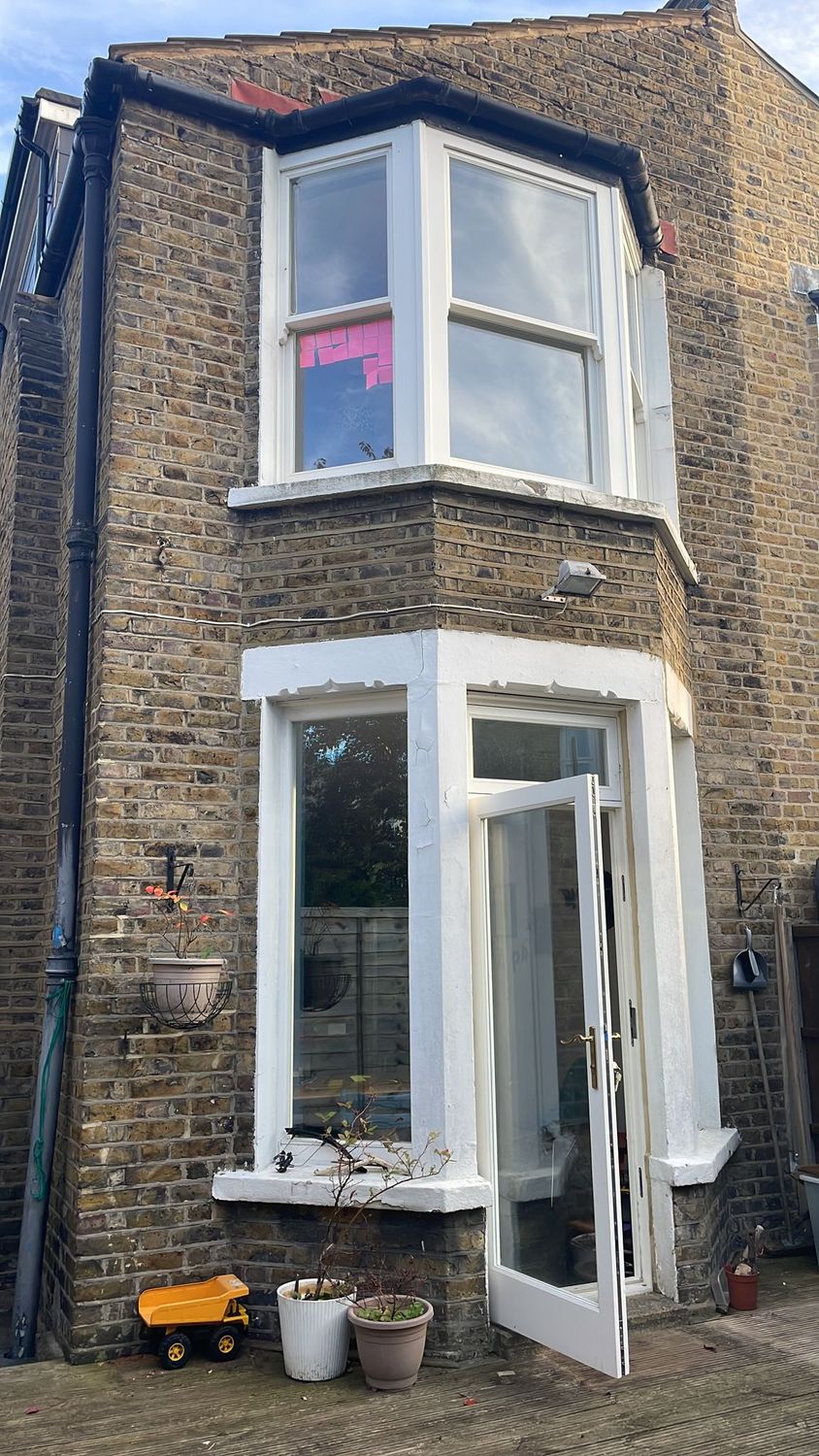

Rear bay window walls before insulation

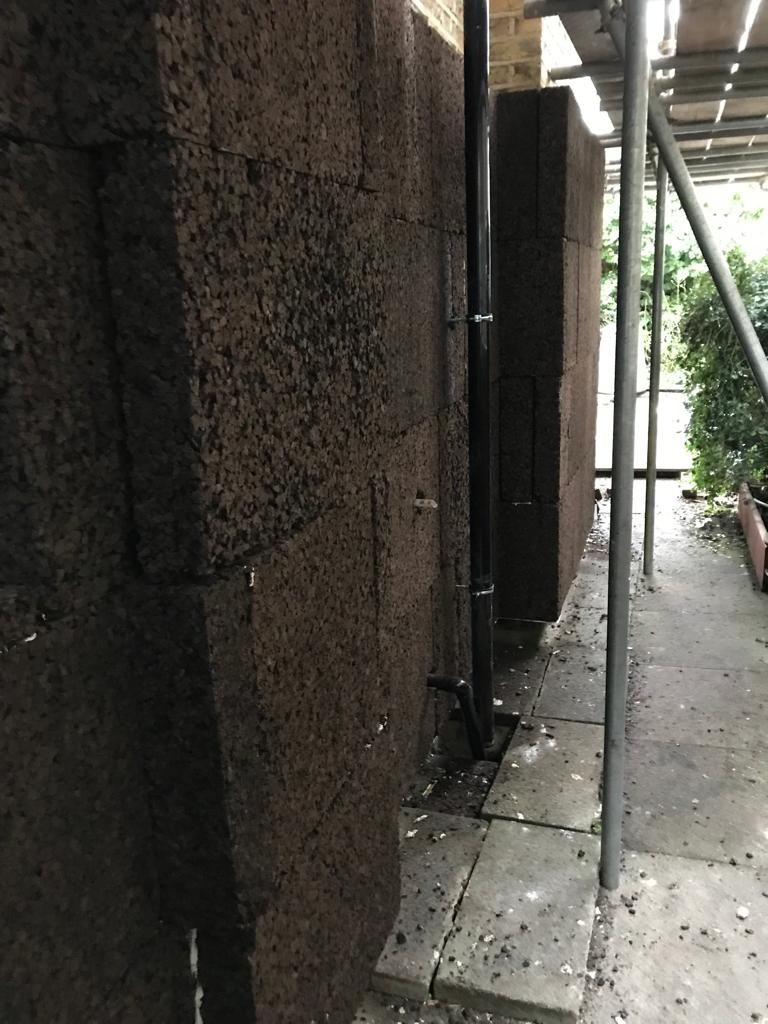

Installation of cork boards onto side wall

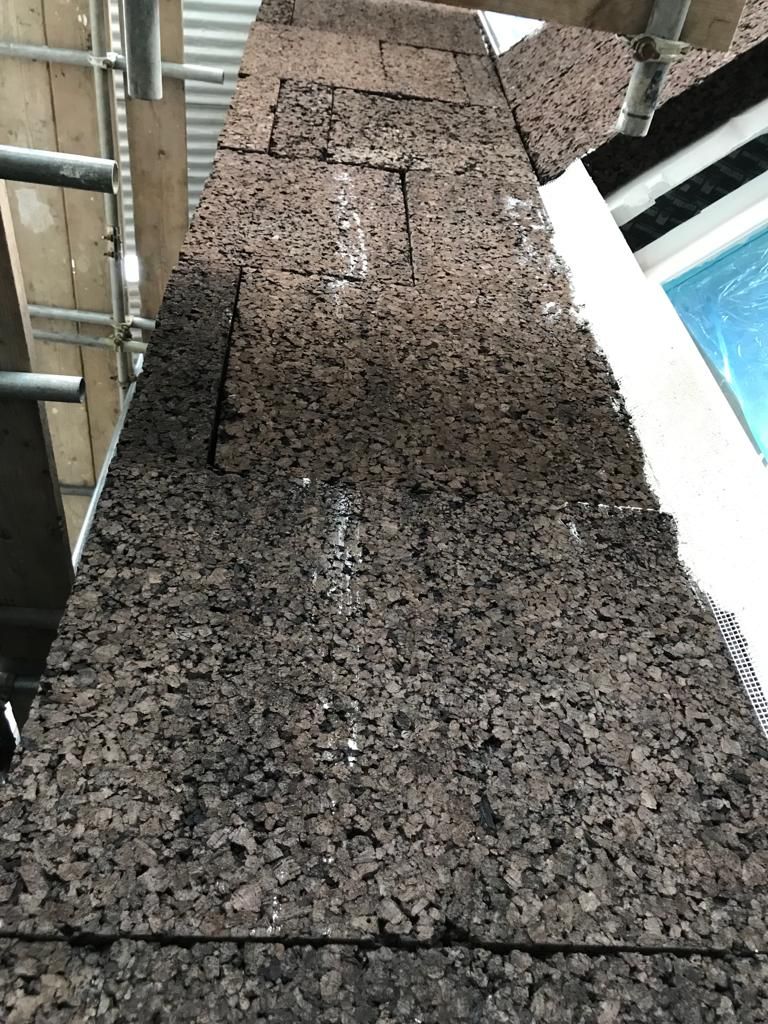

Cork boards fitted around bay wall

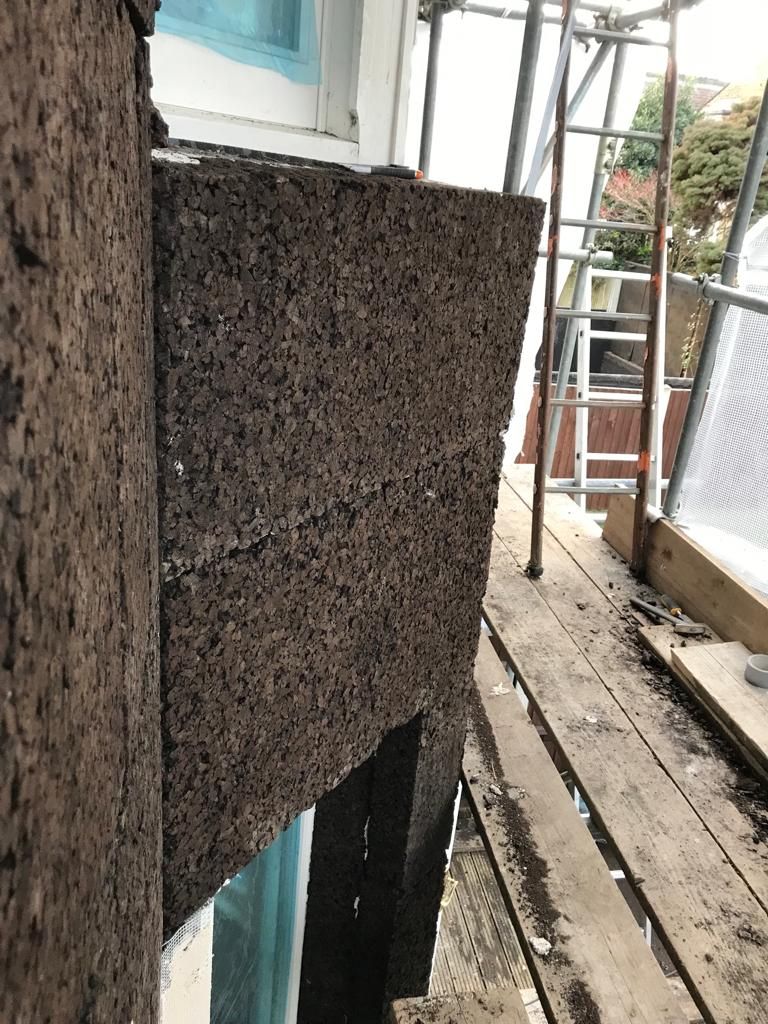

Cork boards fitted around bay window

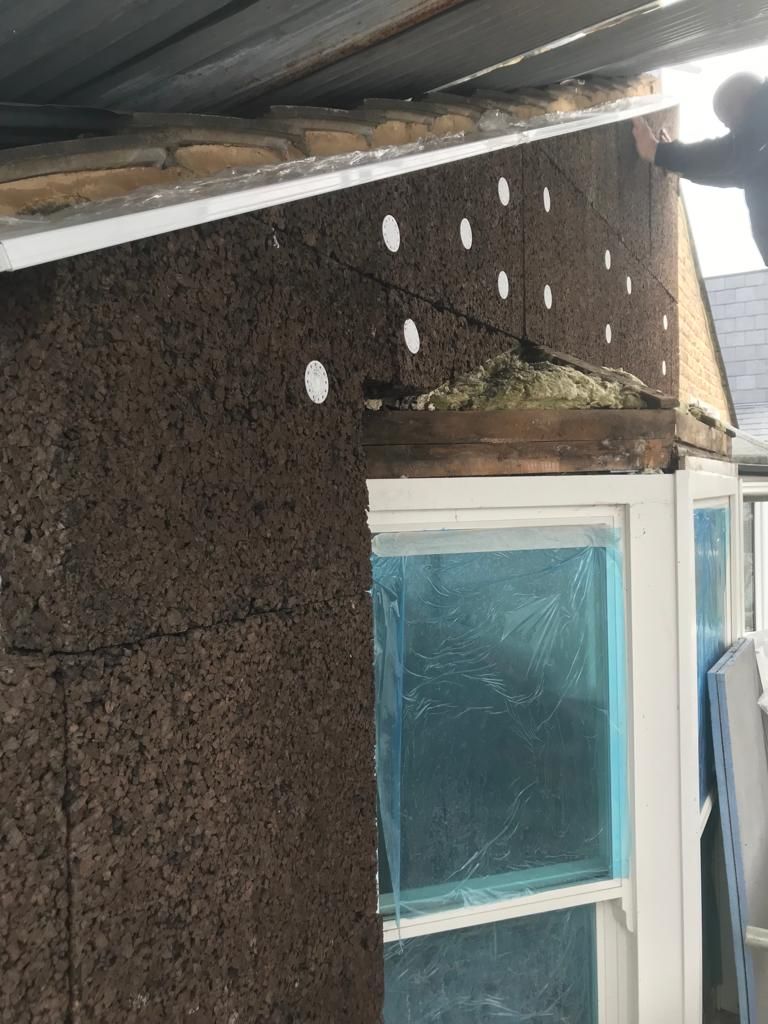

Wall above bay window being insulated

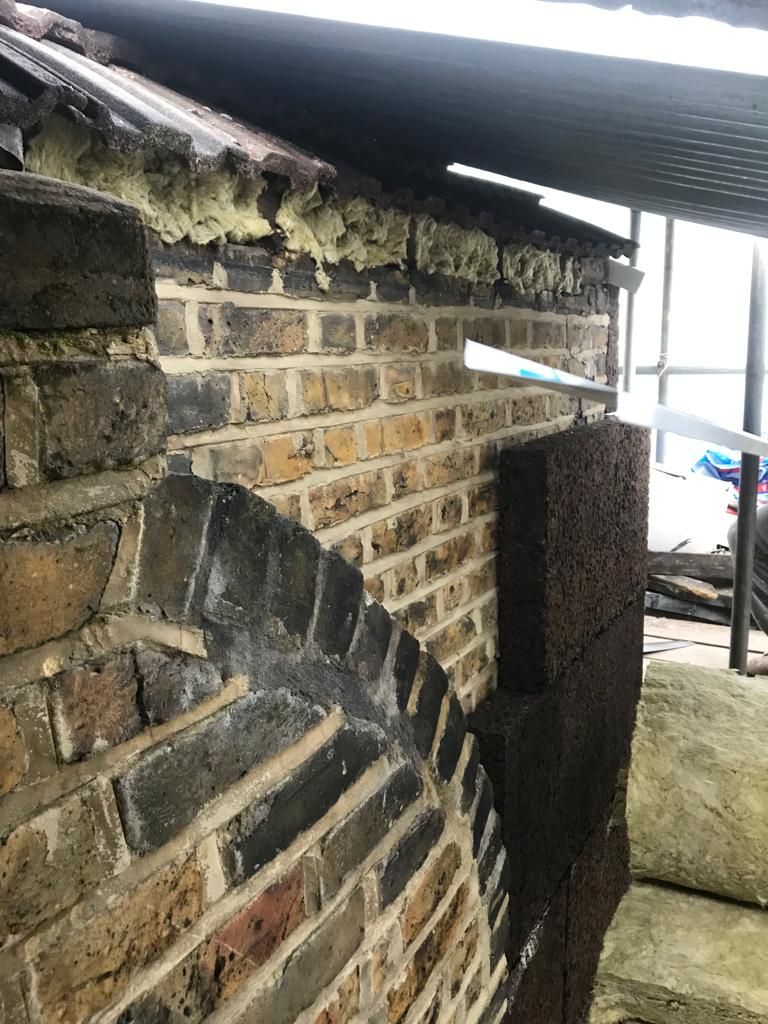

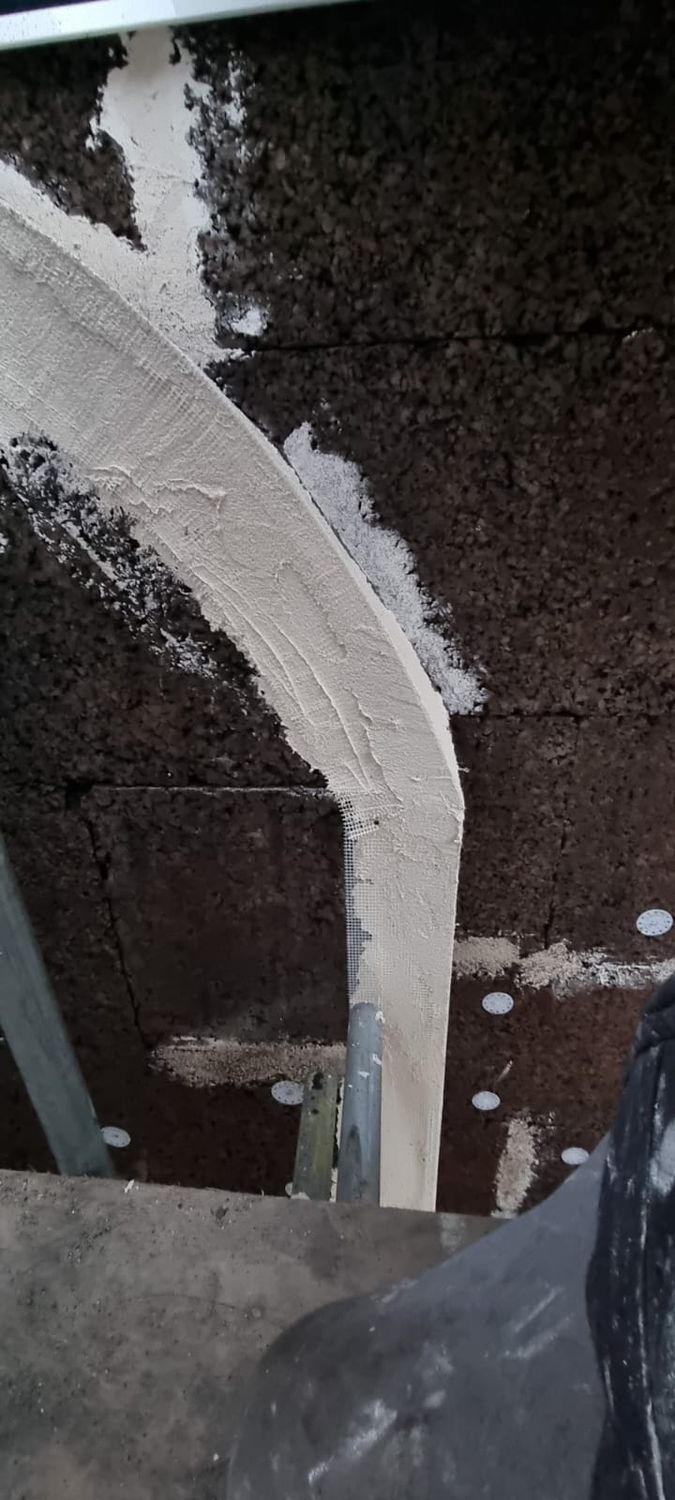

Cork boards being cut around intricate details
Cork boards being cut around intricate details

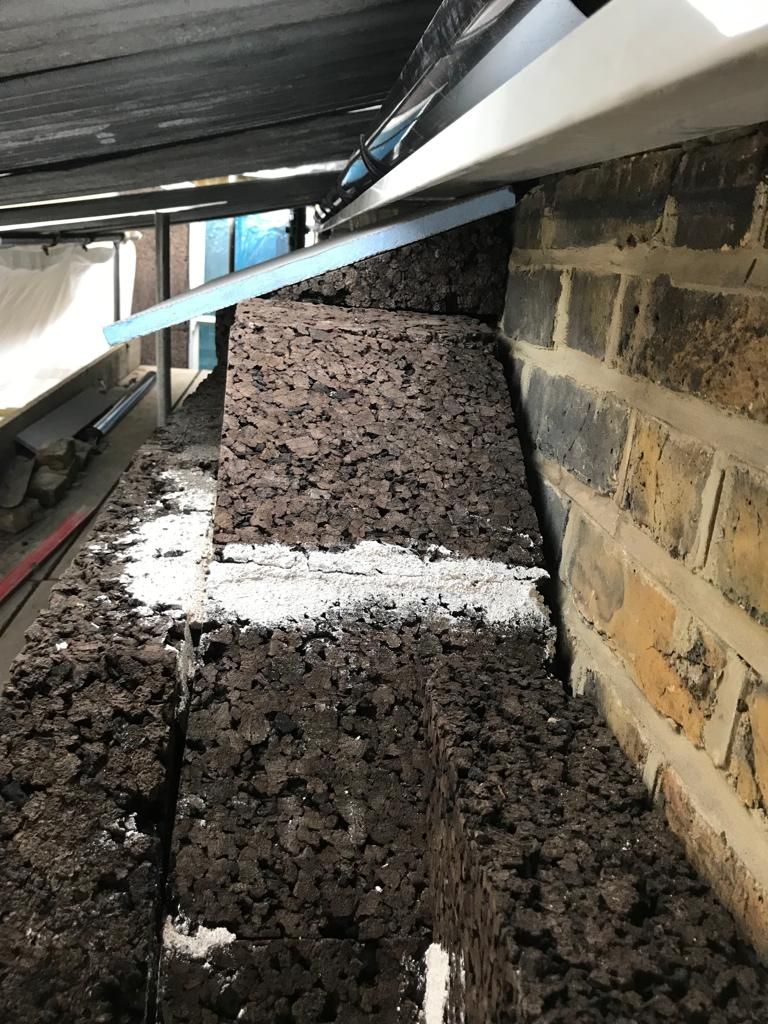

Insulation being detailed to lead rainwater away

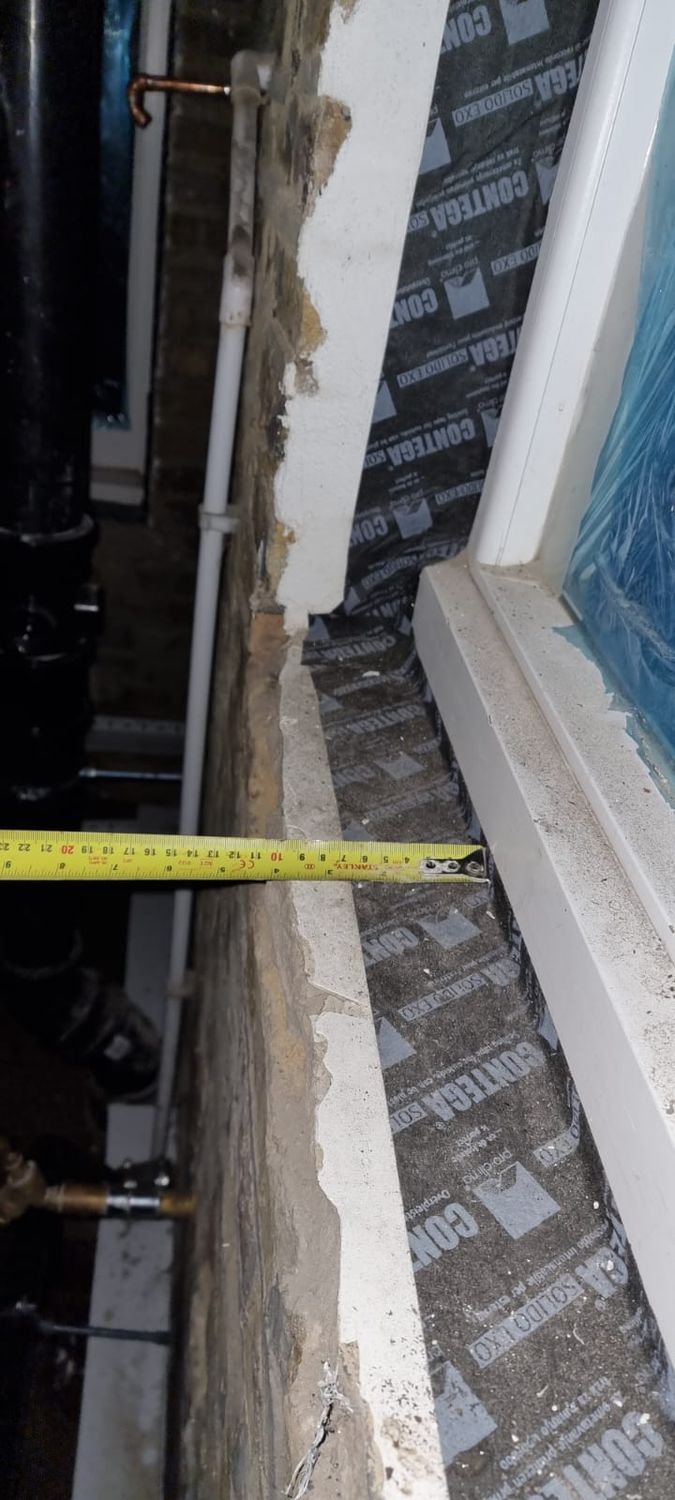

Airtightness taping around window reveal using Pro Clima Contega Solido Exo airtightness tape

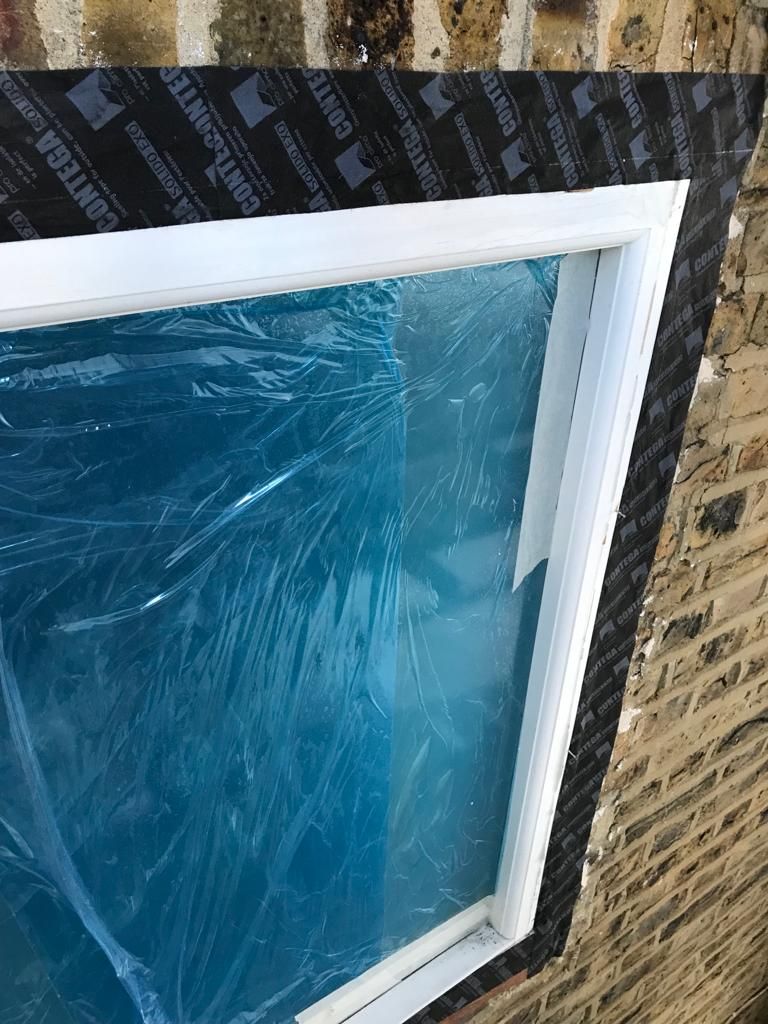

Airtightness taping around window frames with Pro Clima Contega Solido Exo

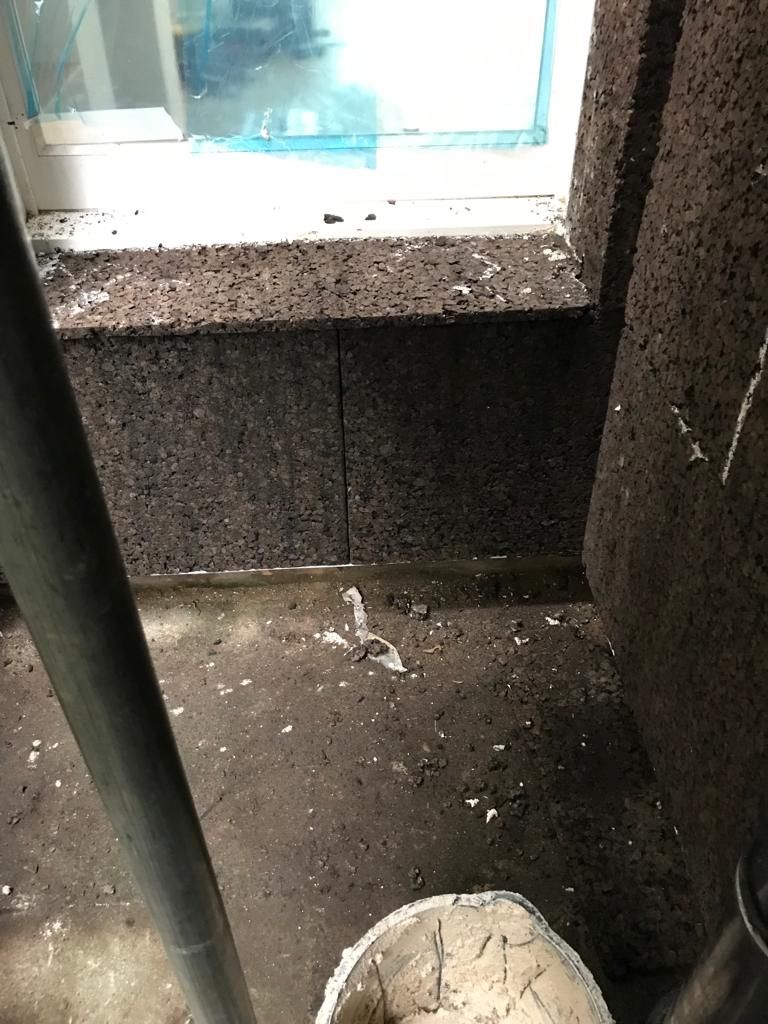

Cork boards installed around window reveals

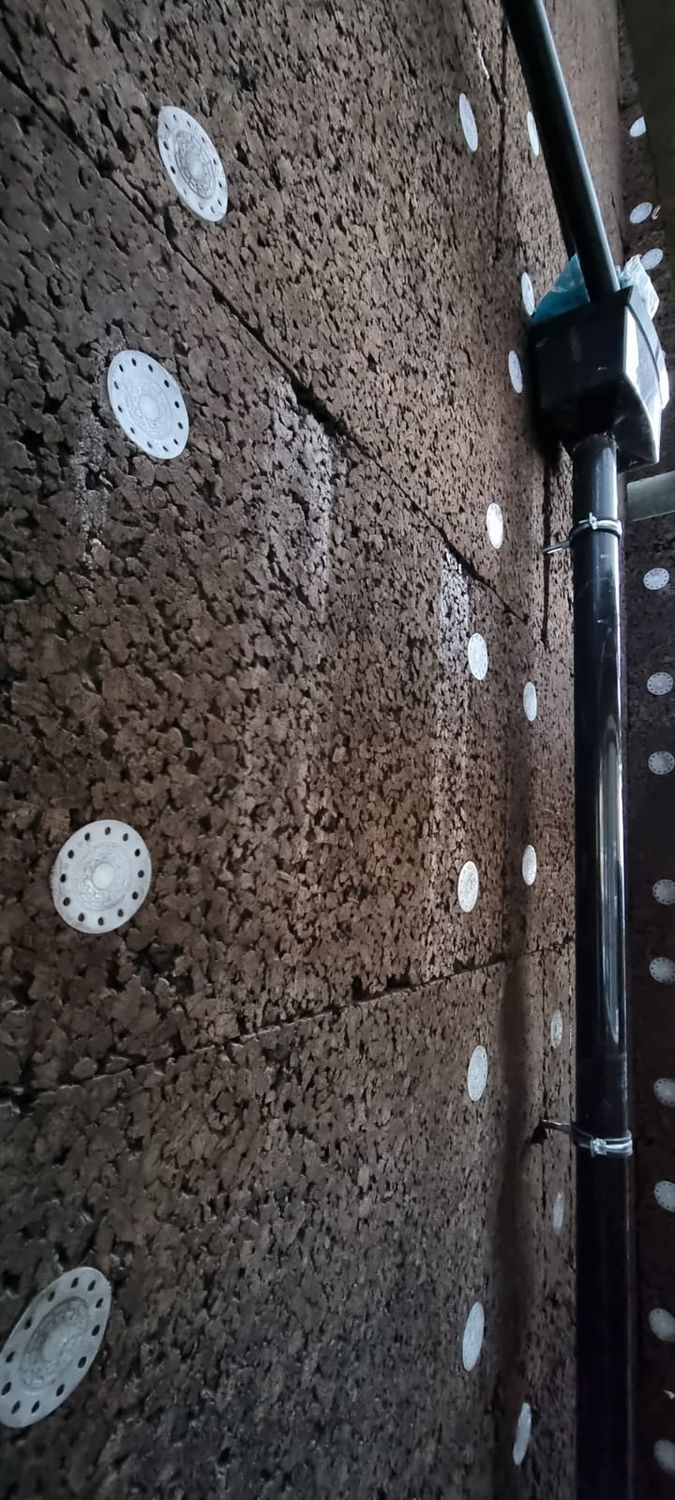

Downpipes refitted after installation of cork insulation boards

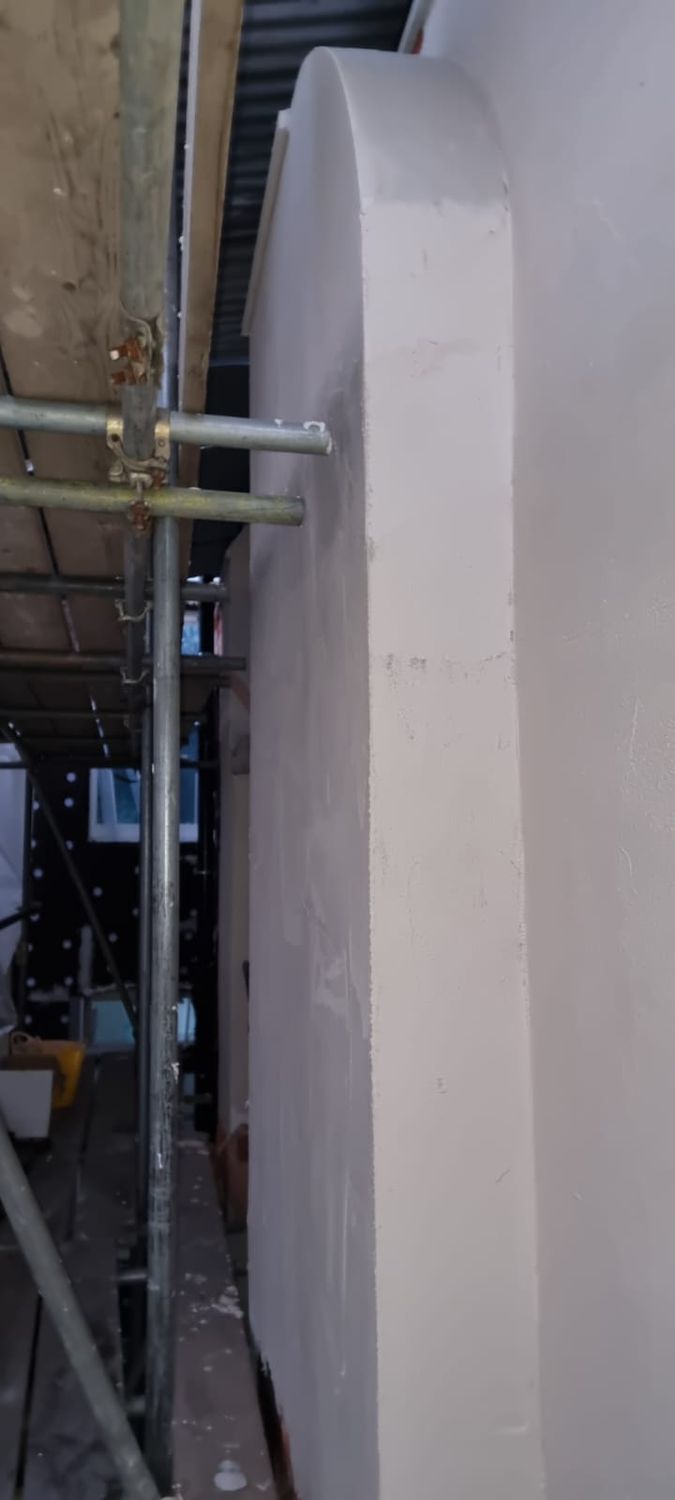

Application of Baumit MC 55 lime base coat onto cork insulation boards

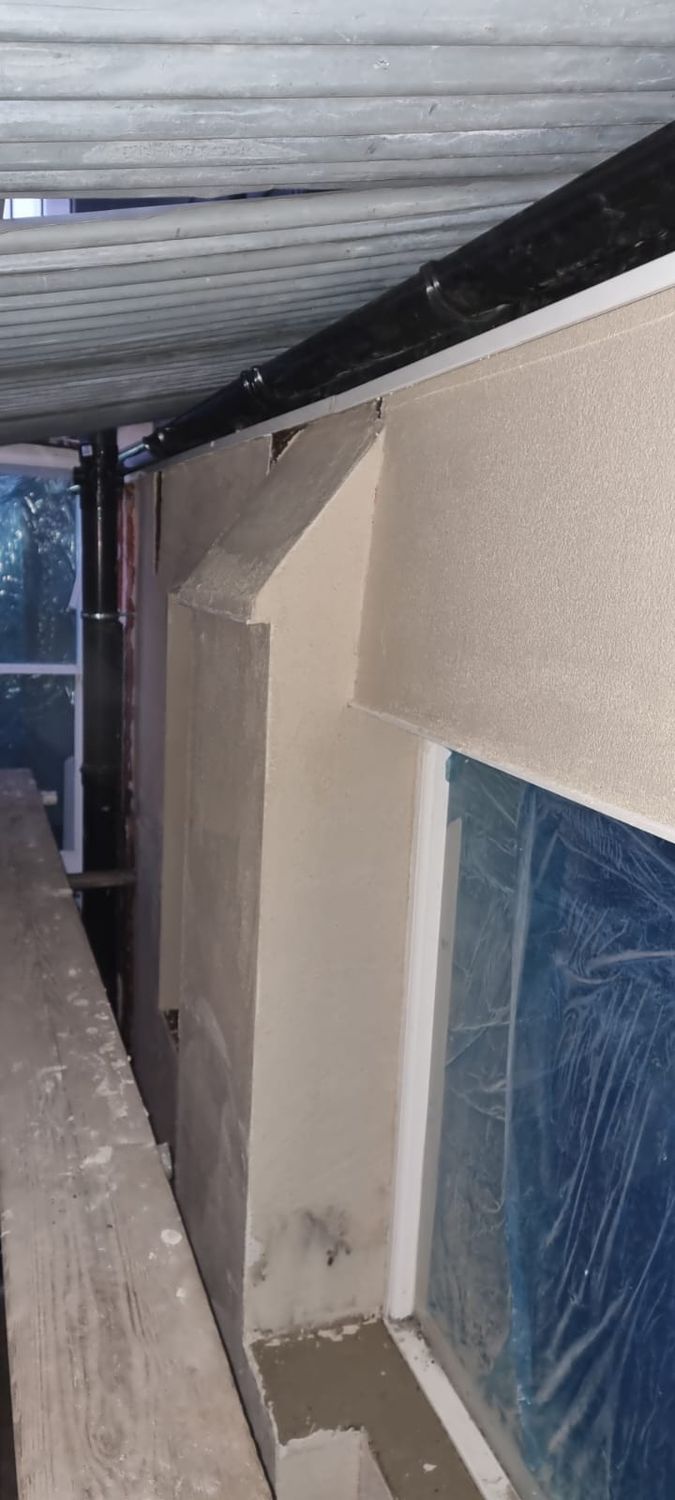

Application of Baumit MC 55 lime base coat

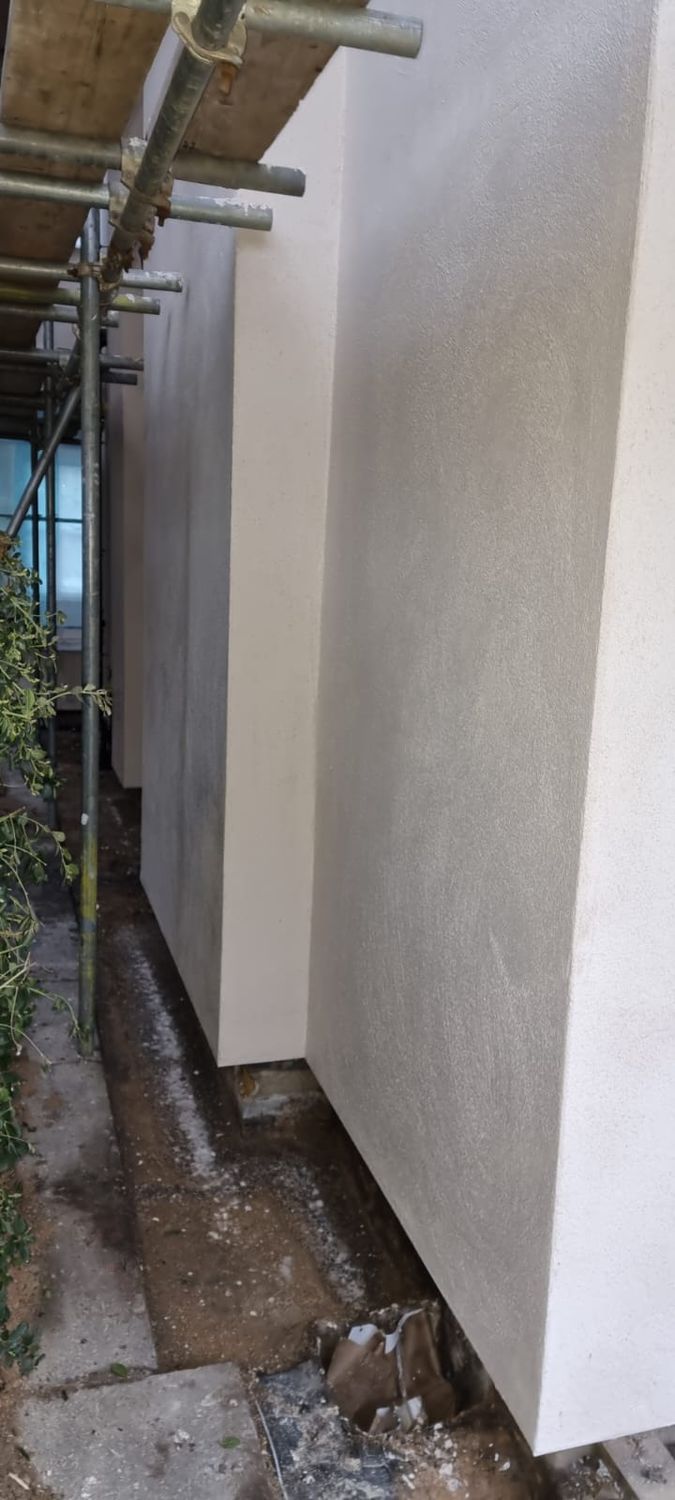

Application of Baumit MC 55 W lime base coat

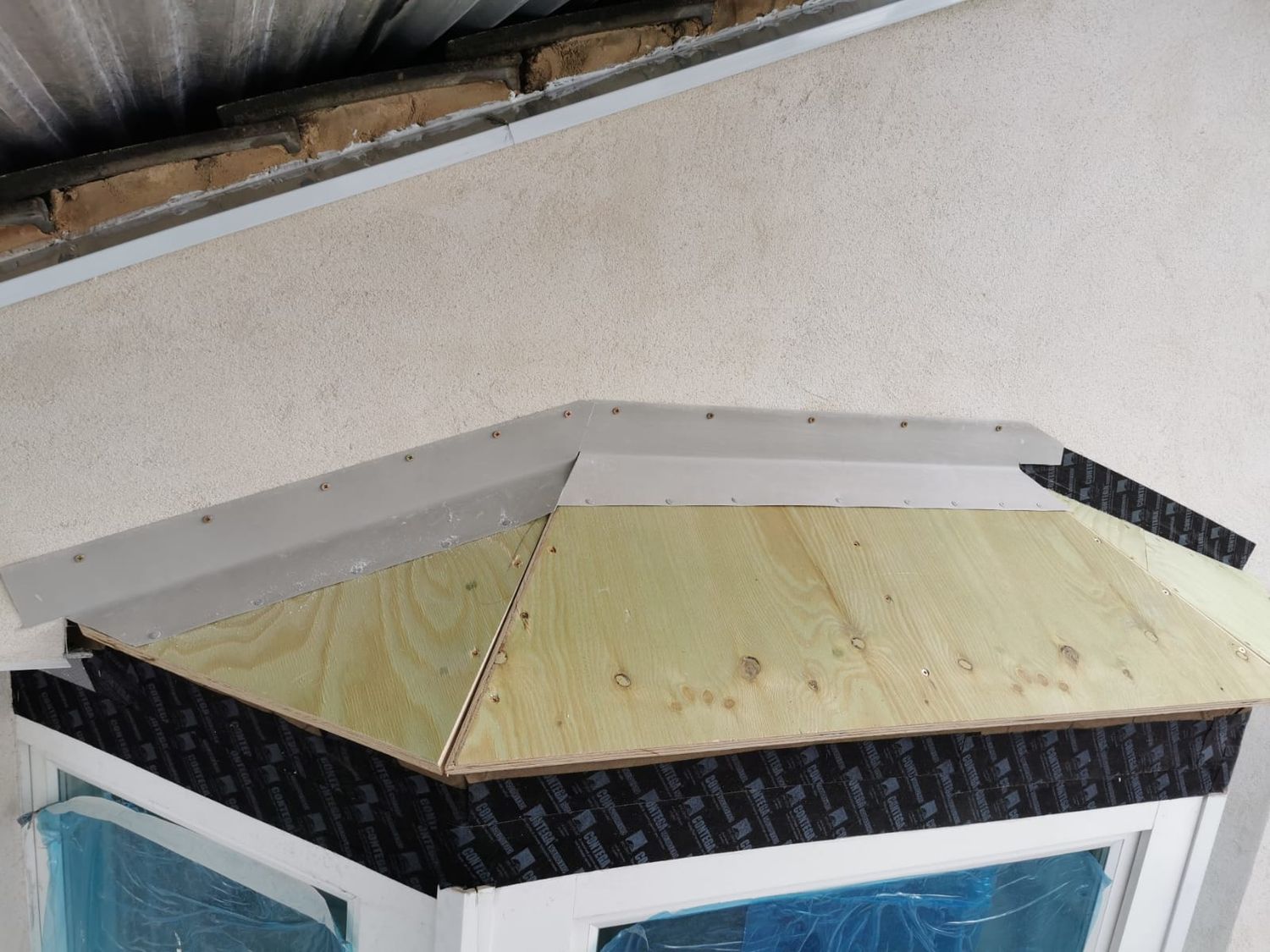

Installing new bay-window roof with flashing & airtightness tape around

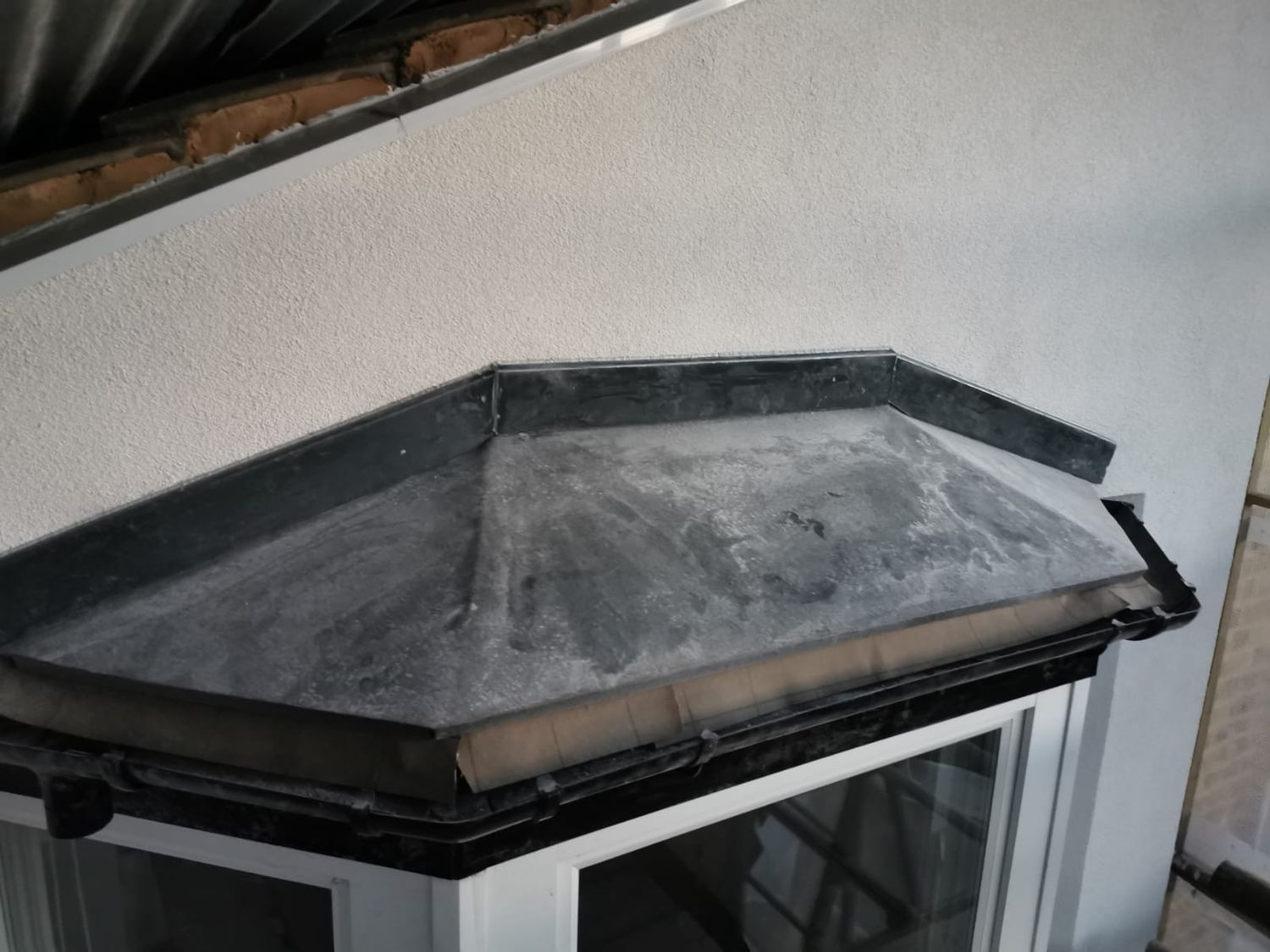

New, insulated bay-window roof completed

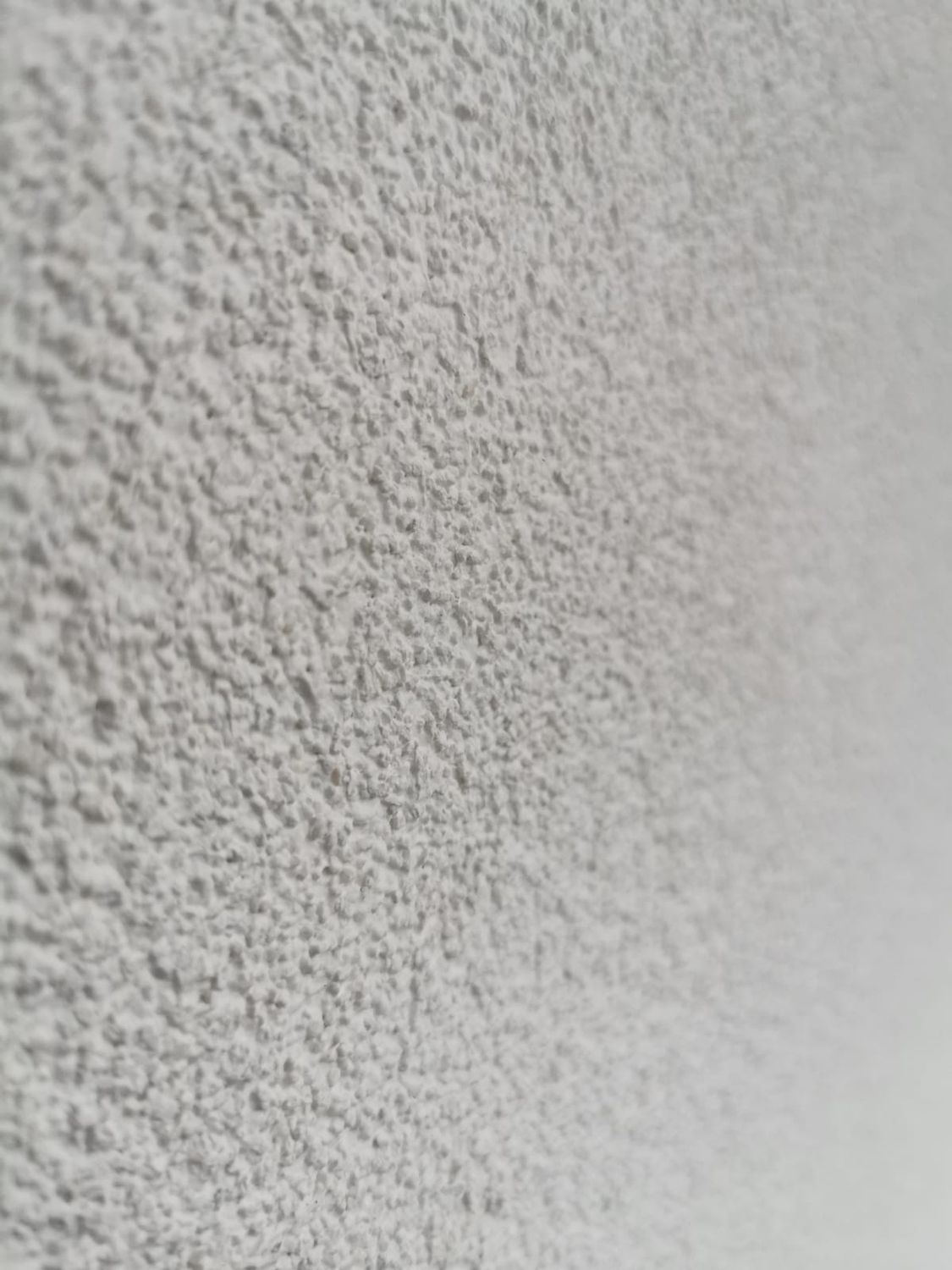

Breathable silicone render applied

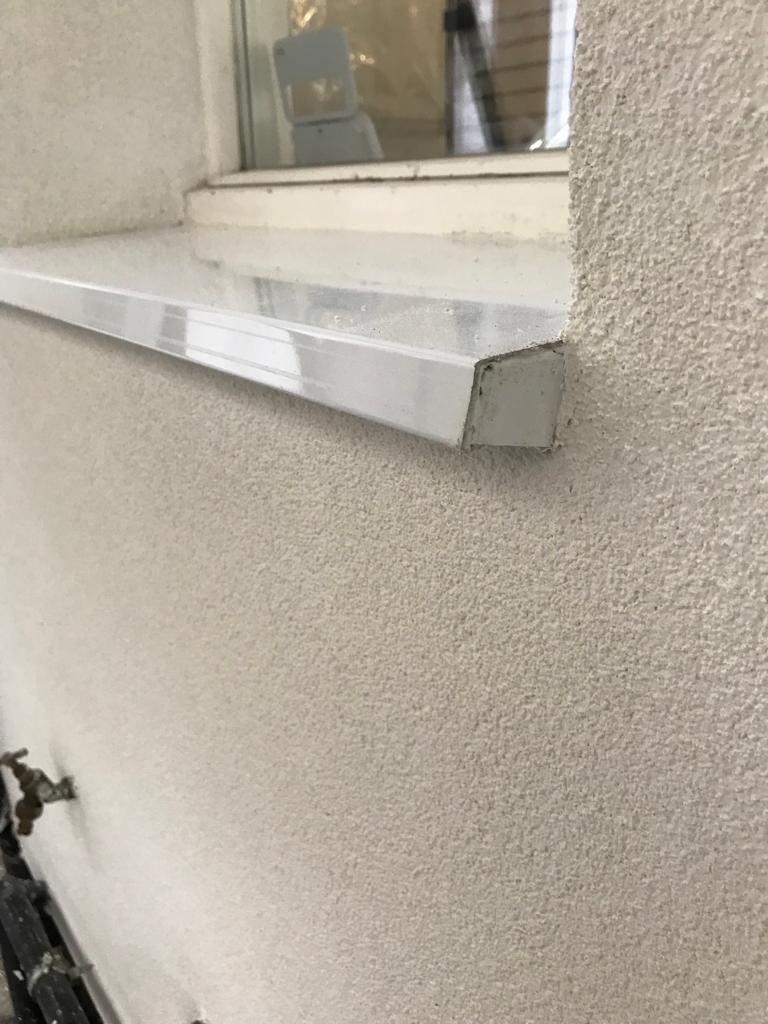

Aluminium windowsills installed

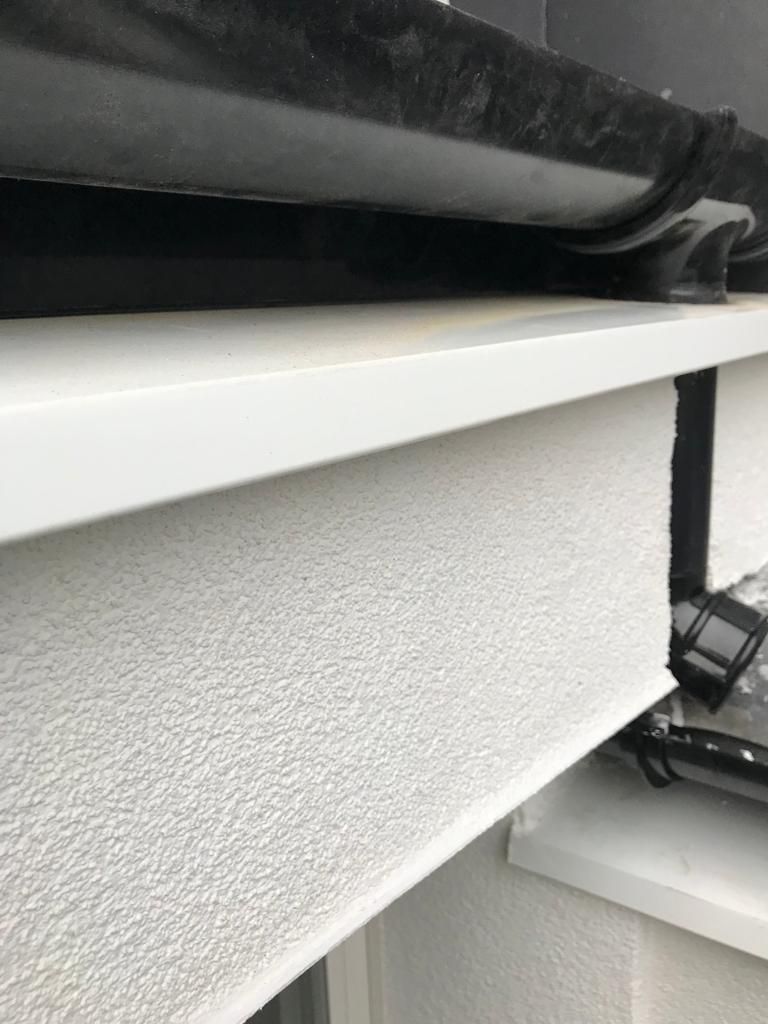

White powdered aluminium verge trim installed to cap off insulation

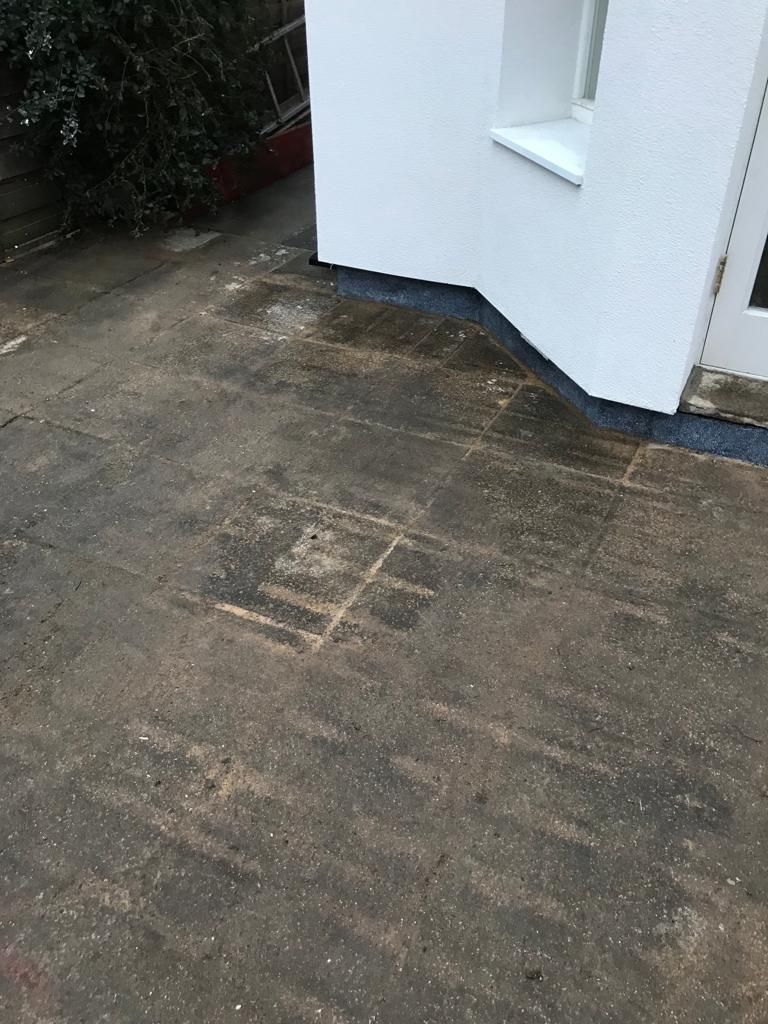

Plinth insulation being installed

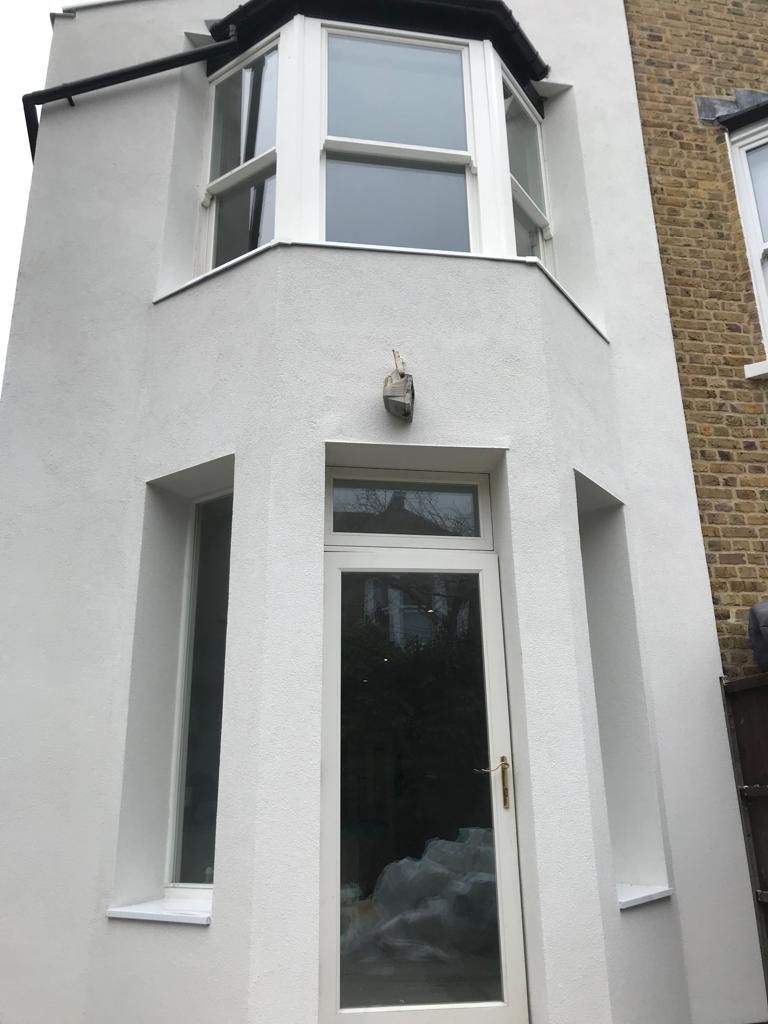

External wall insulation with cork insulation boards installed, aluminium window sills with breathable silicone render

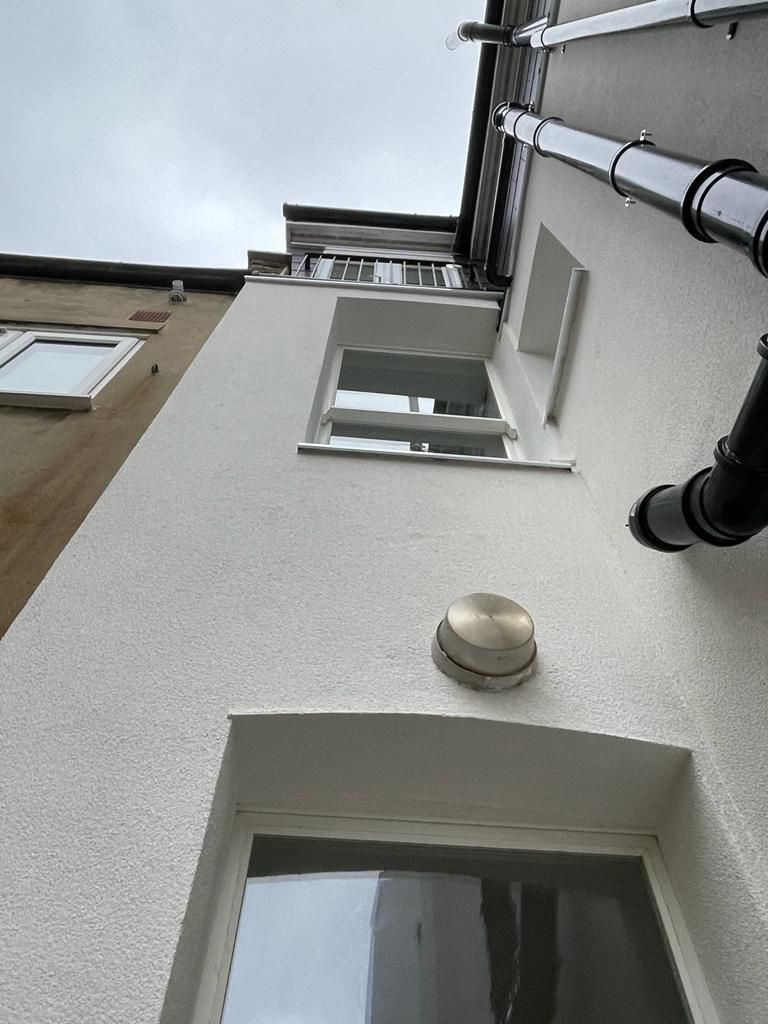

External wall insulation with cork insulation boards installed, aluminium window sills

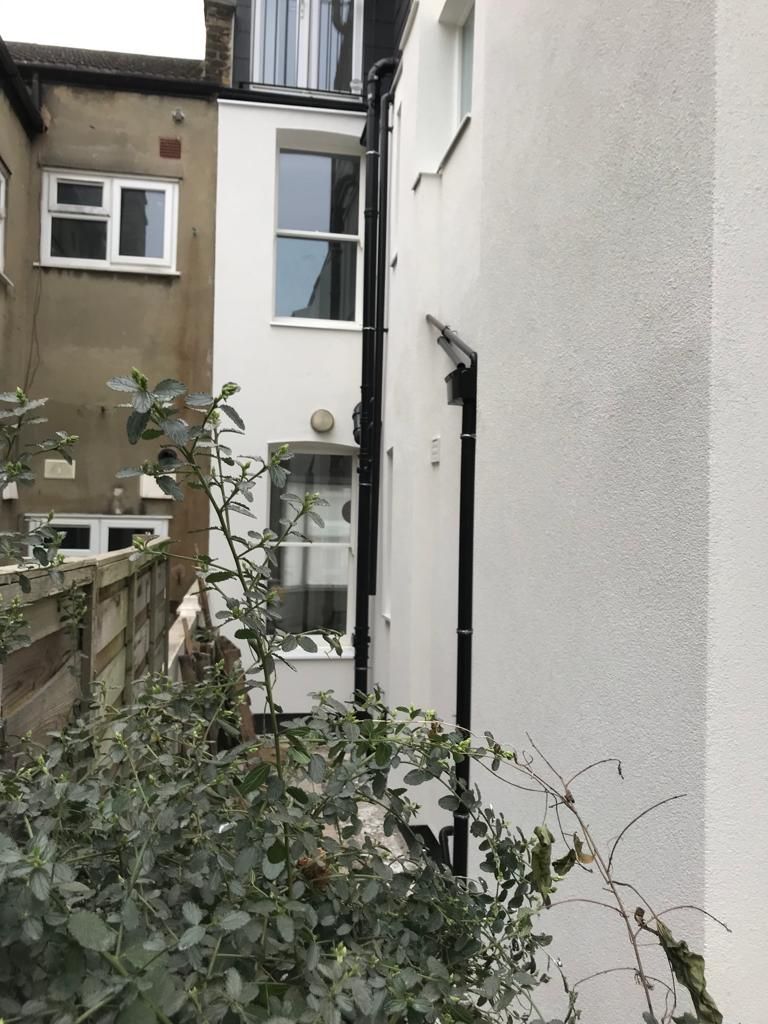

External wall insulation with cork insulation boards installed, with breathable silicone render in London

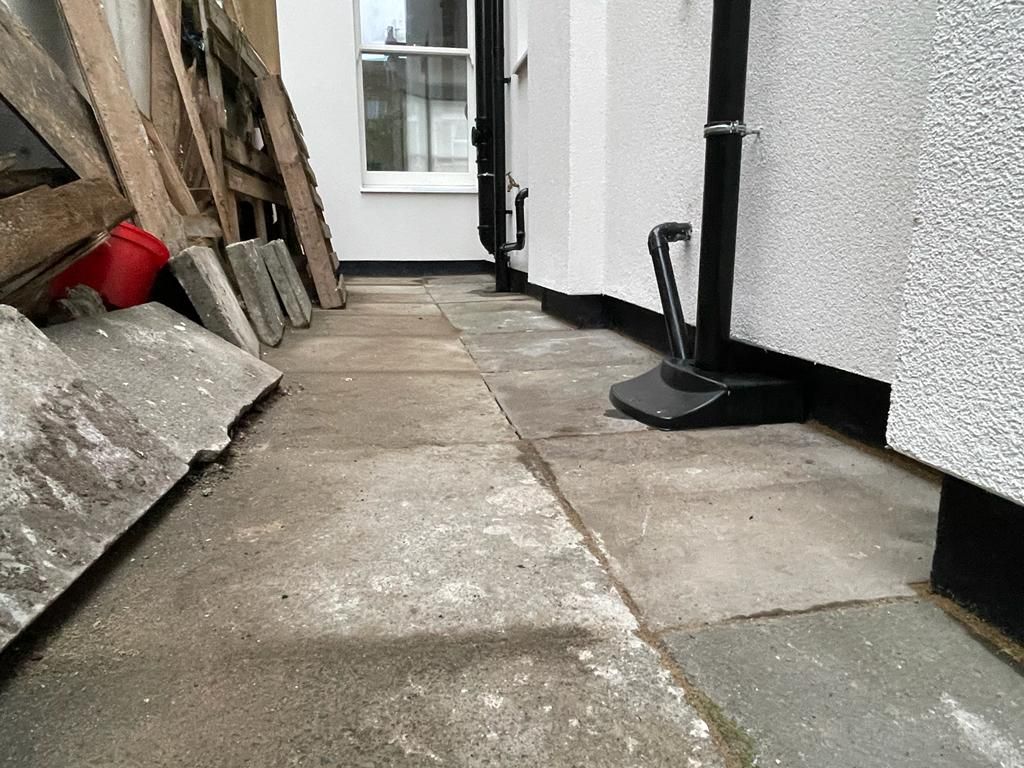

External wall insulation with plinth insulation - black mosaic render
If you want a wall insulation that is plant-based from end to end, cork does it, and it takes the awkward shapes of a Victorian terrace.
