Cement render had been put on this late Georgian cottage at some point and was taken back to bare brickwork before anything else happened. The old window sills came out with it.
Diathonite Evolution lime-cork-clay insulating render then went on every external wall, carried into the window reveals to cut the thermal bridge there, with Contega Solido Exo tape sealing the junction to the frames. New insulating sills were cut with a drip gap to throw rain clear of the wall, the fascia and gutters were refitted to the new wall line, and the plinth was insulated and finished in grey mosaic render with ventilation grilles.

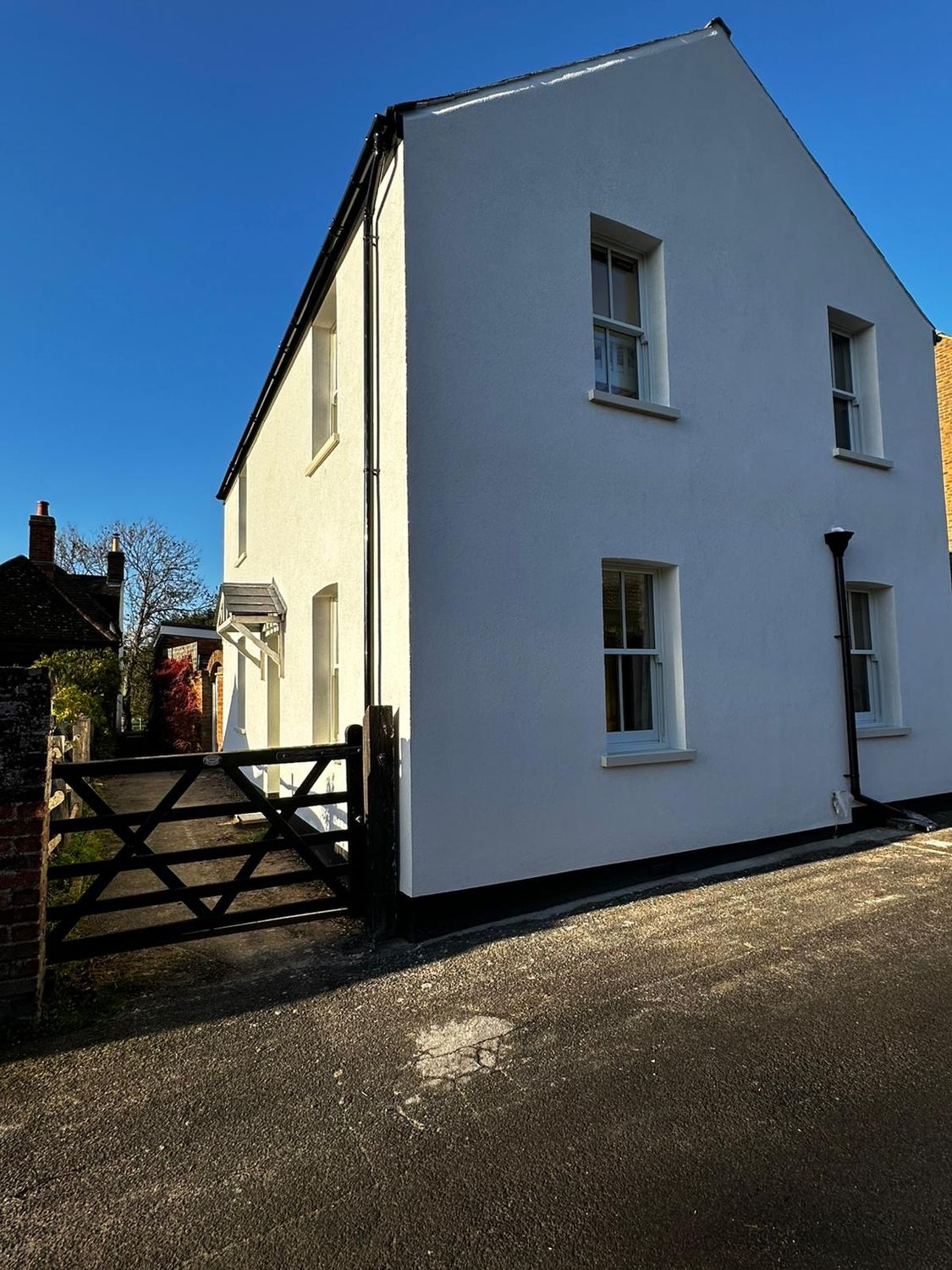

External walls Insulation with Diathonite Evolution lime-cork-clay thermal rendering system in Piccotts End, Hemel Hempstead

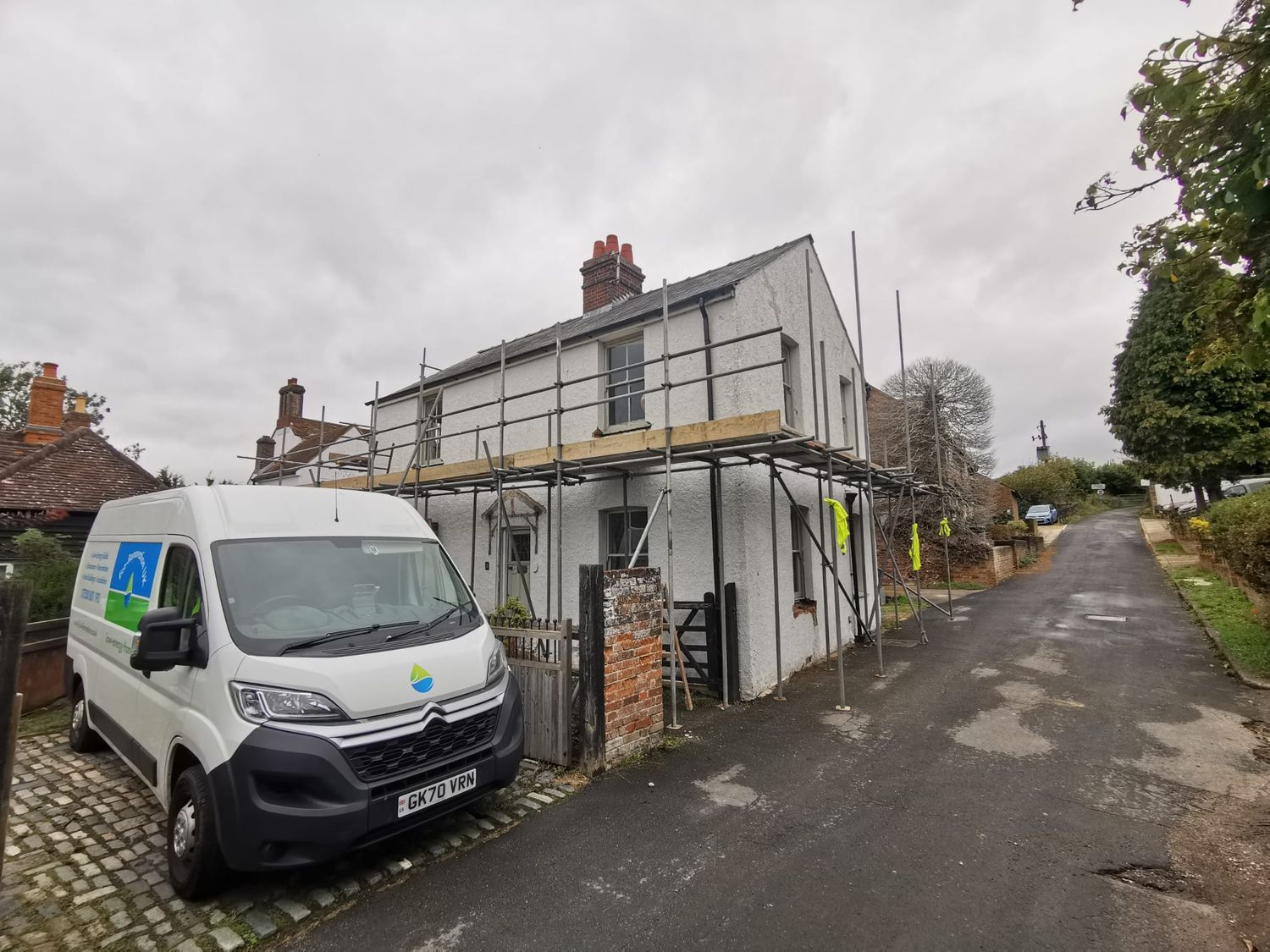

Preparation - cement render to be removed

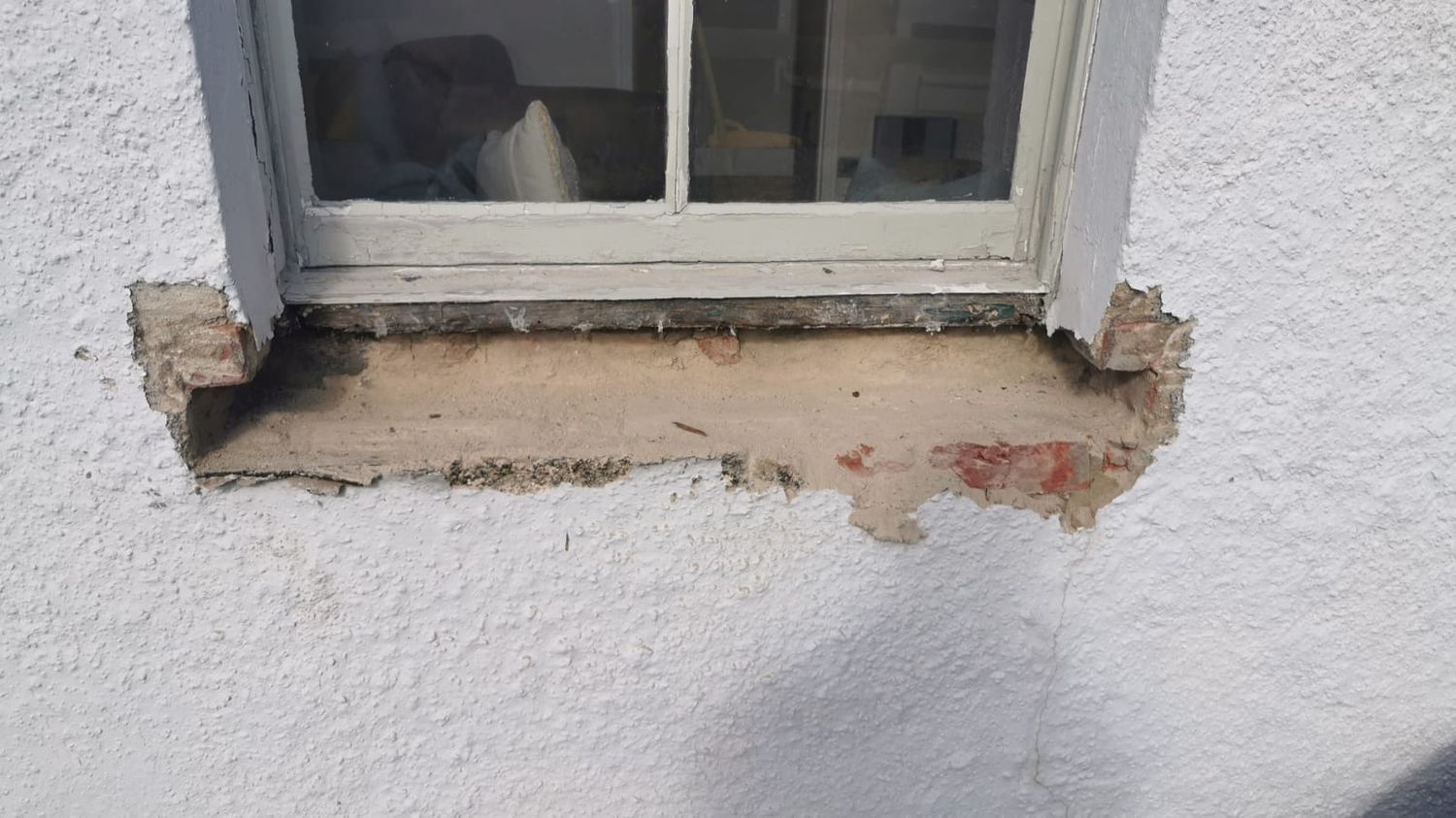

Preparation - old window sill taken out

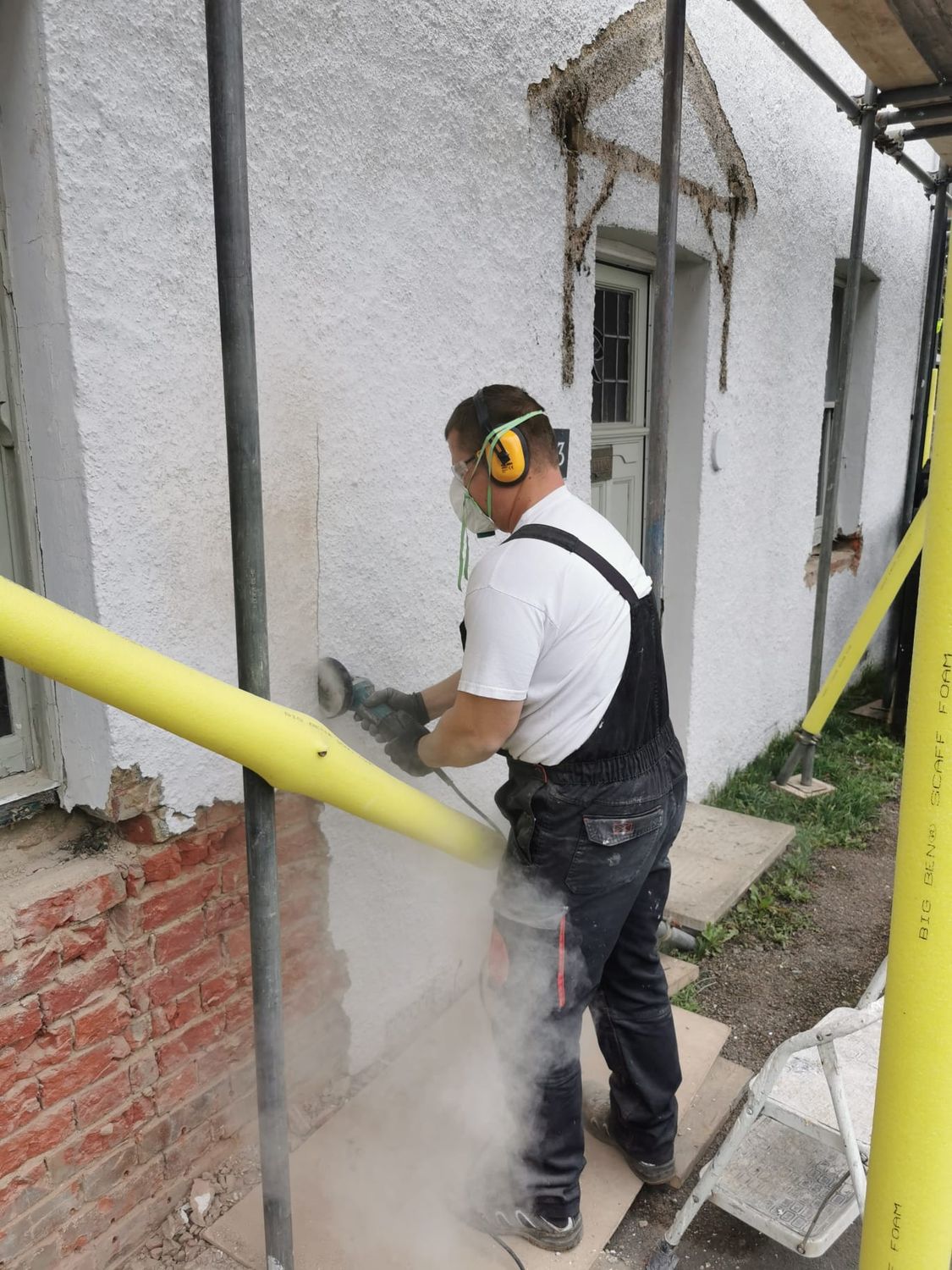

Preparation- cement render being taken back to bare brickwork

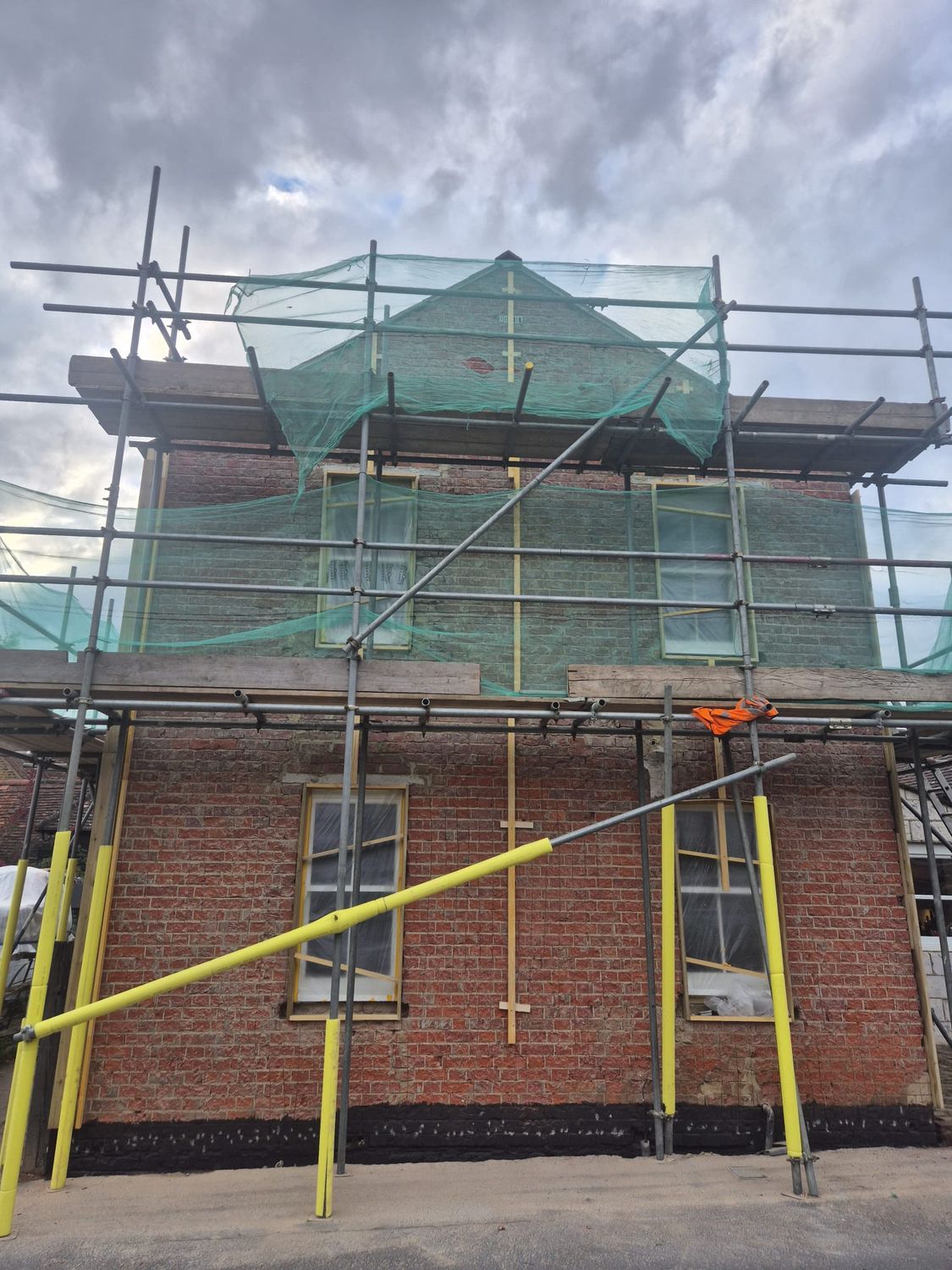

Preparation - all windows covered before new render applied

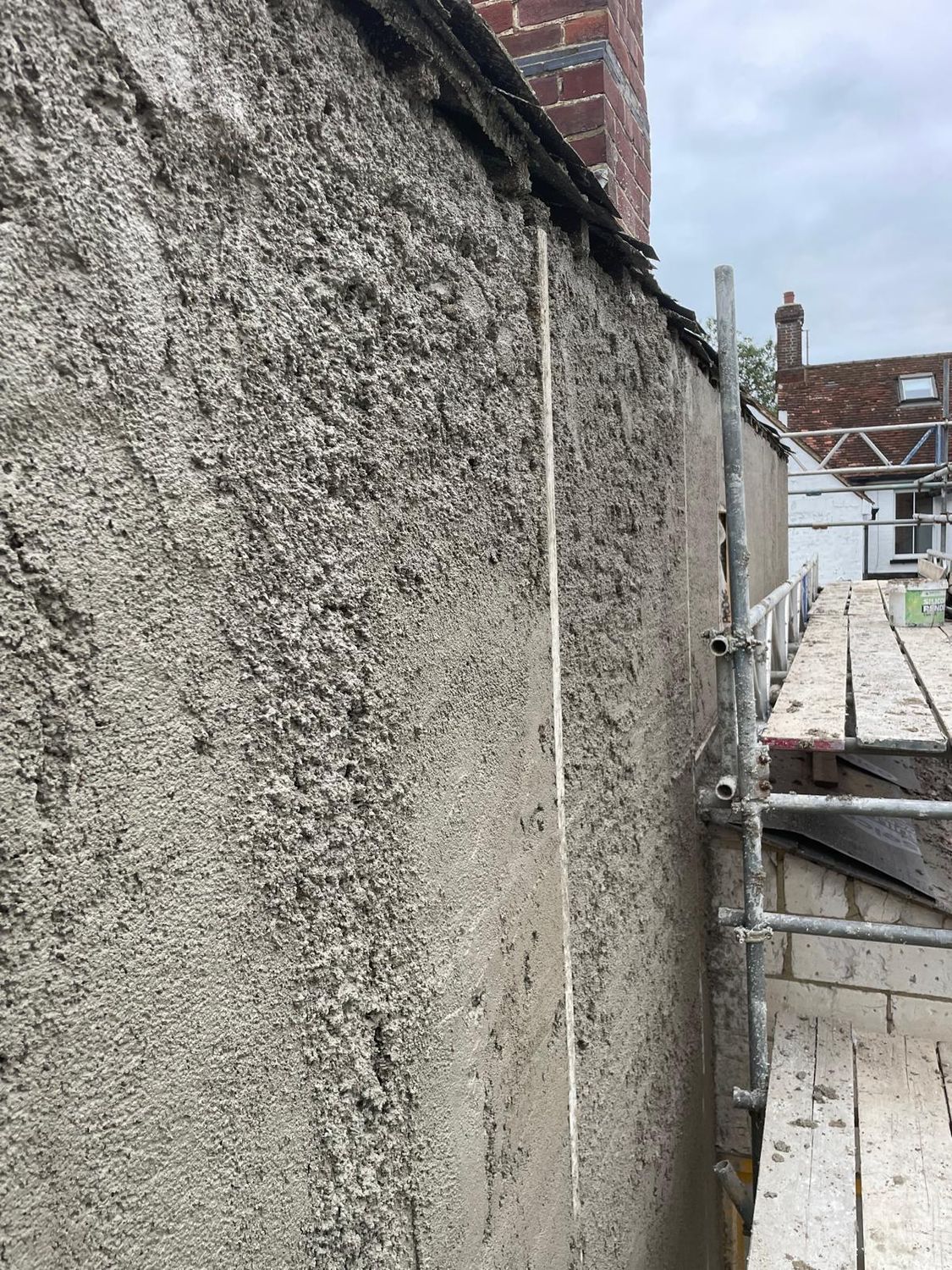

Application of Diathonite Evolution lime-cork-clay insulating render

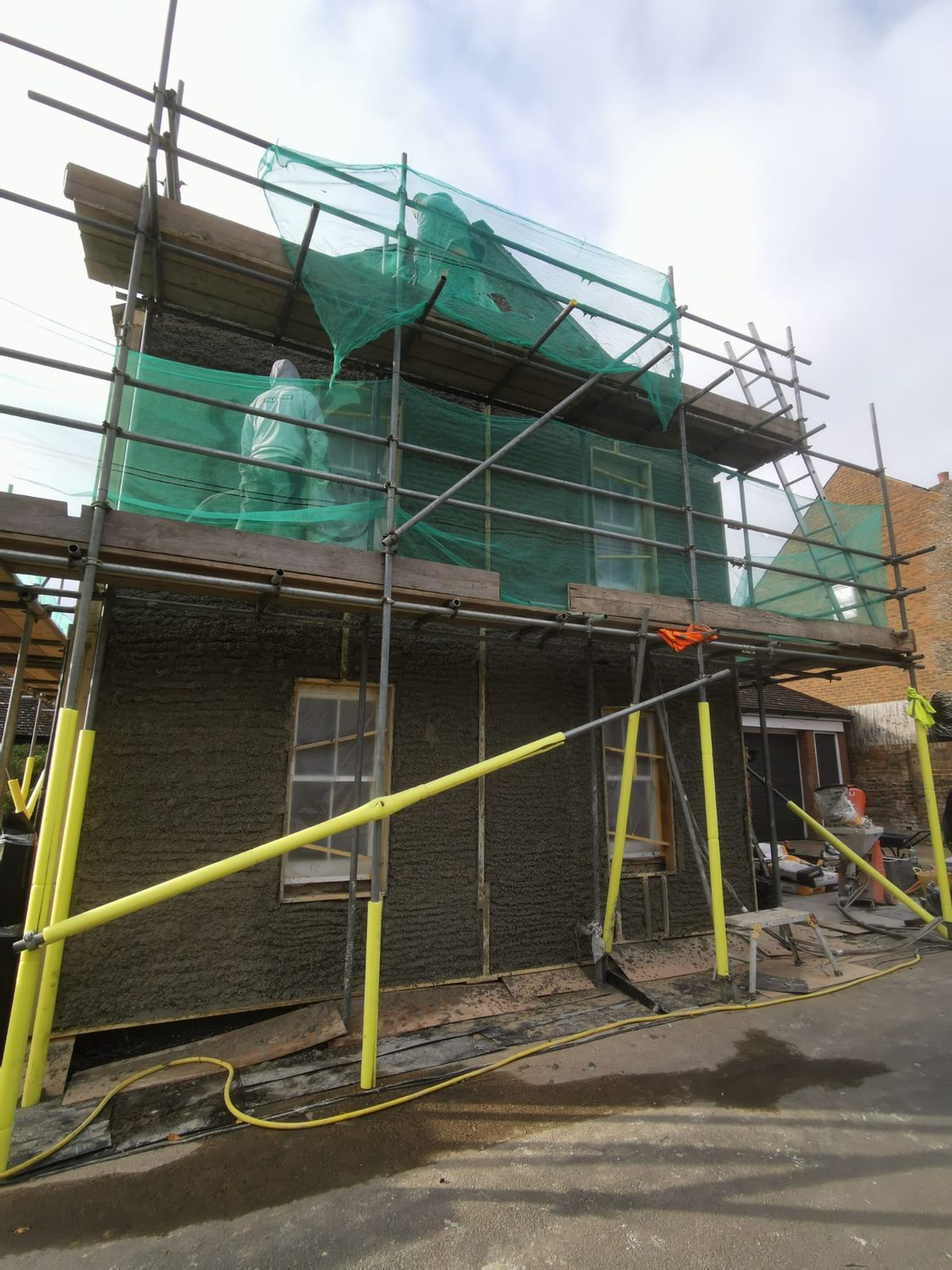

Diathonite Evolution lime-cork-clay insulating plaster being installed on all external walls

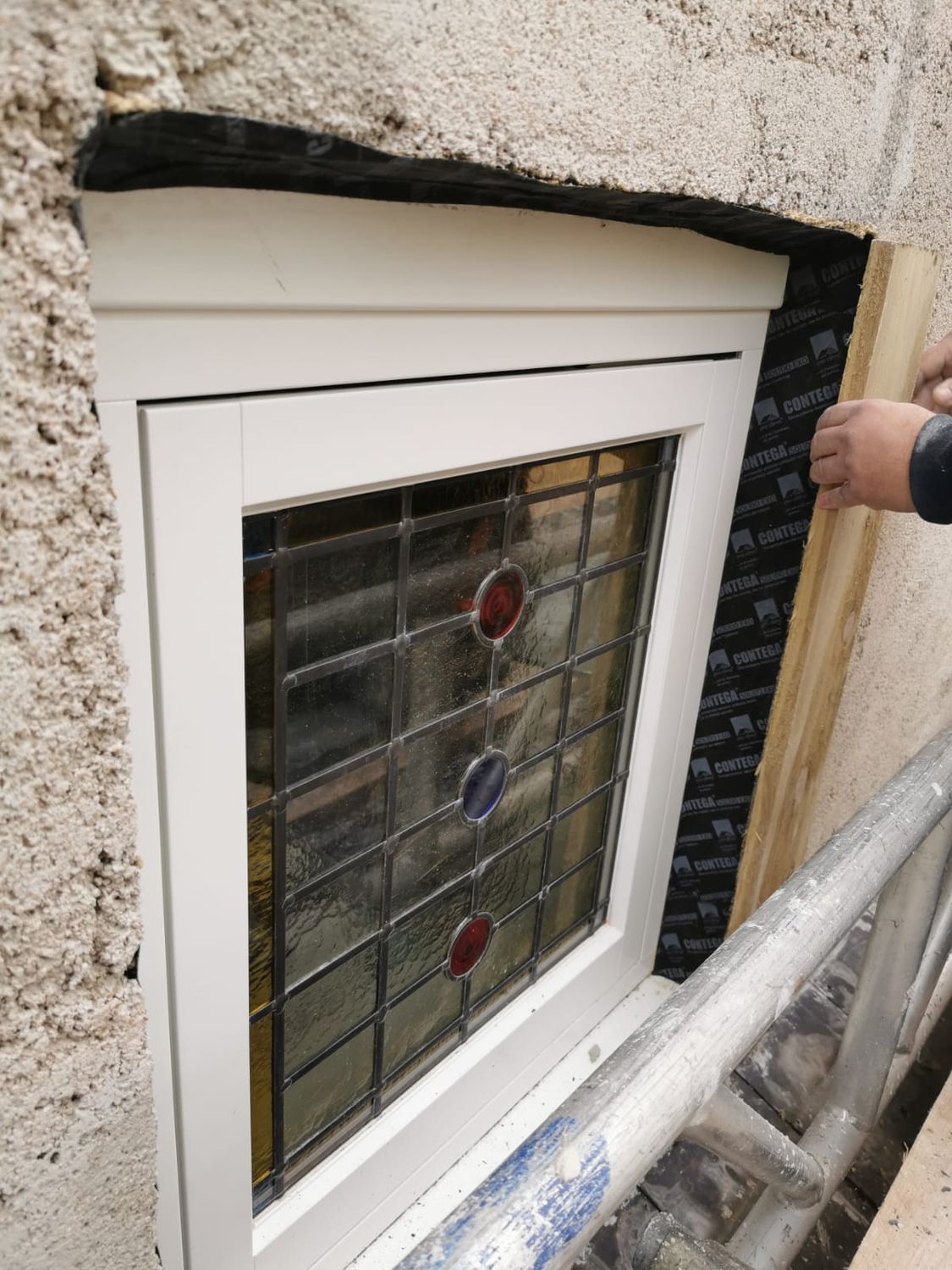

Applying Contega Solido Exo airtightness tapes around external window reveal

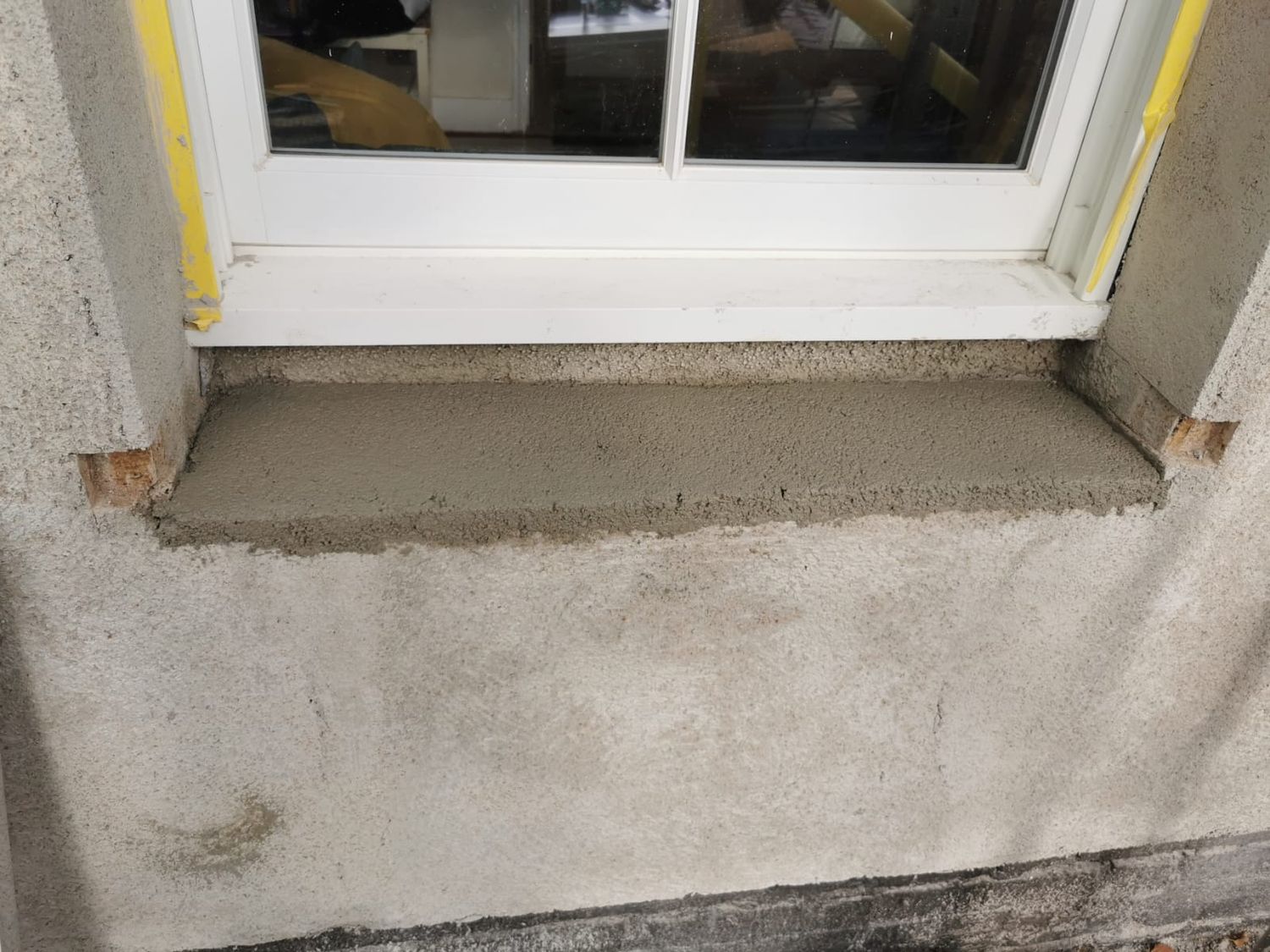

Insulating render applied around external window reveals to reduce thermal bridge

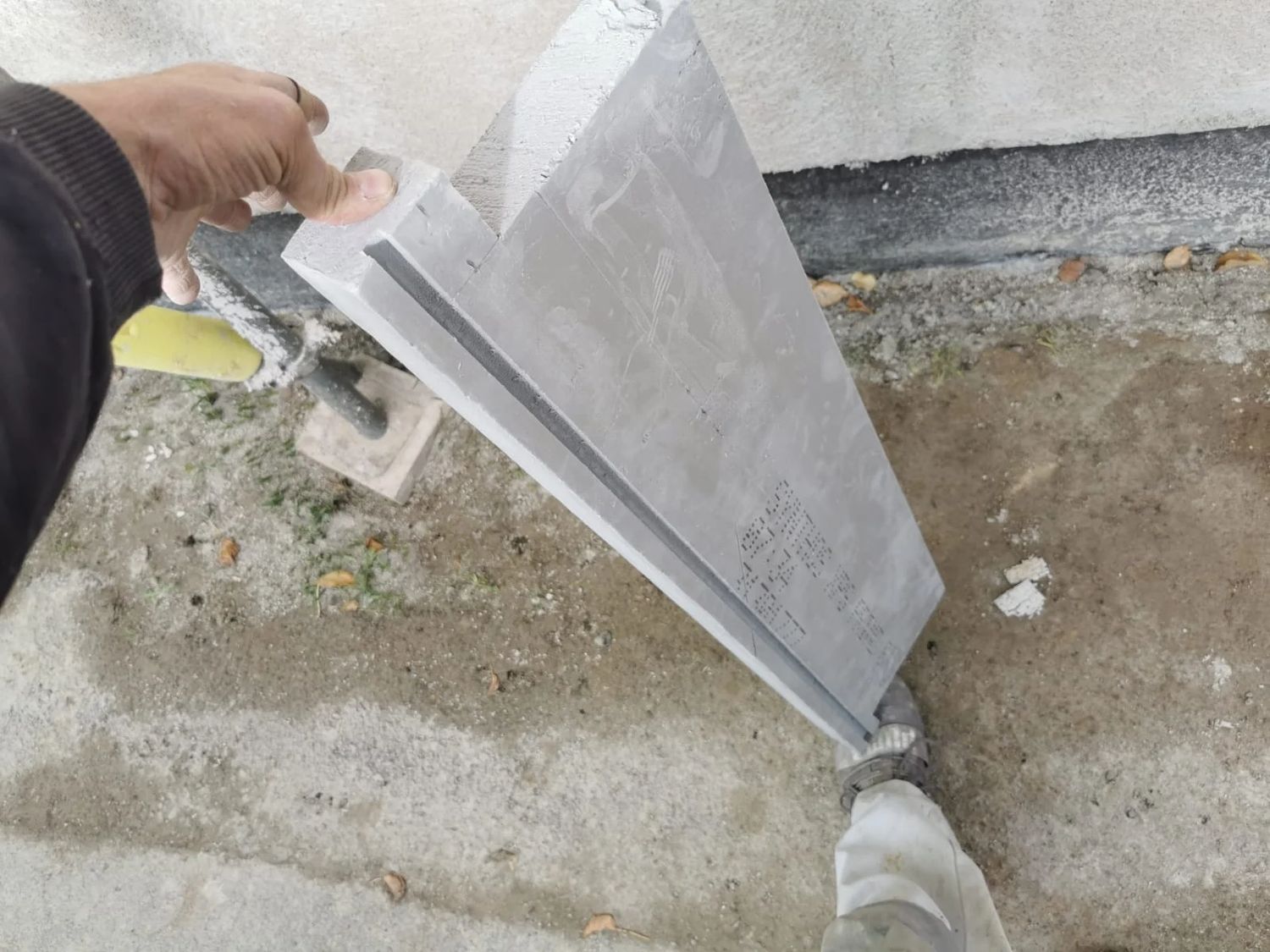

New insulating window sill cut to size

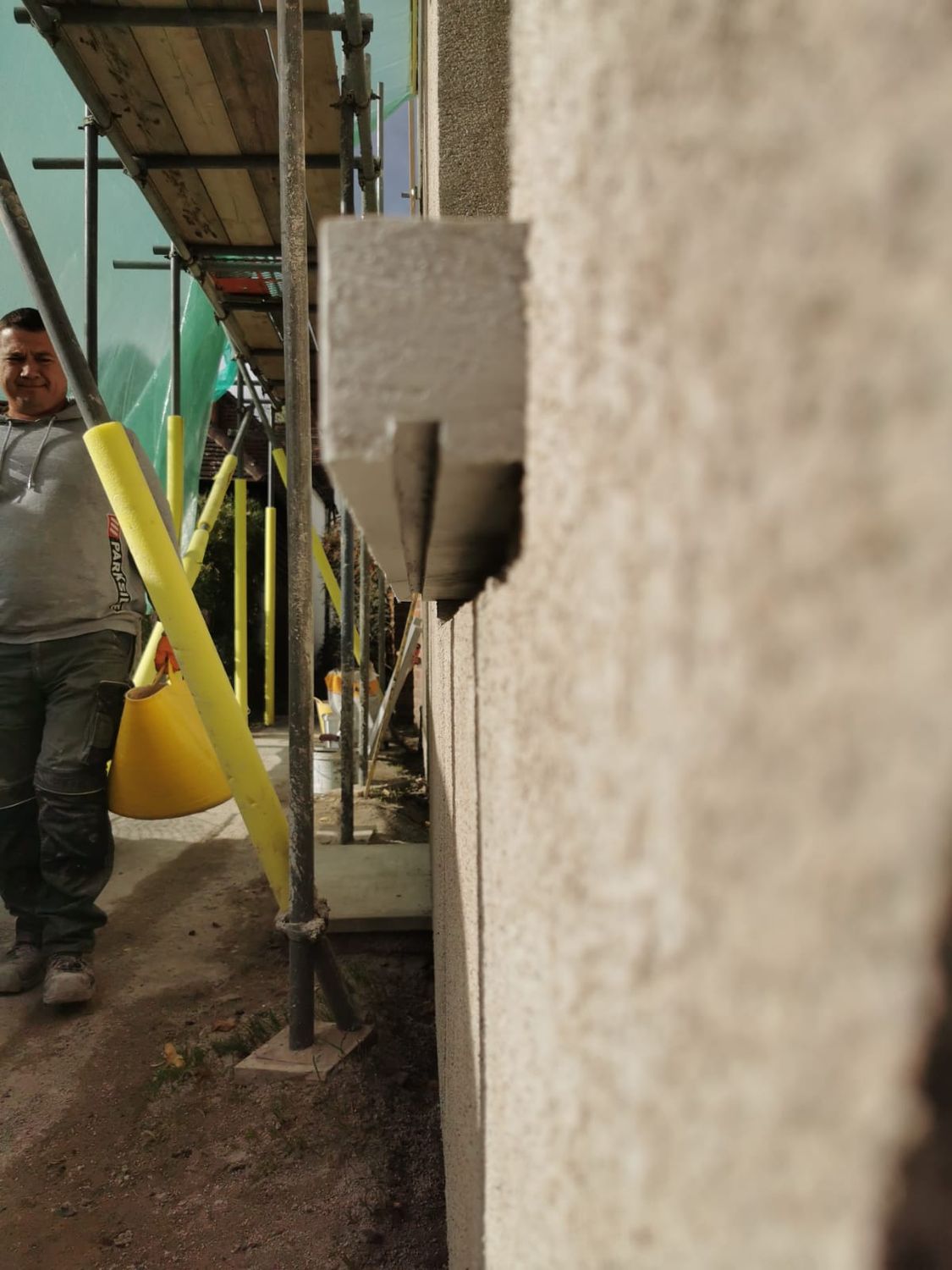

New window sill in place with drip gap to keep rain away from wall

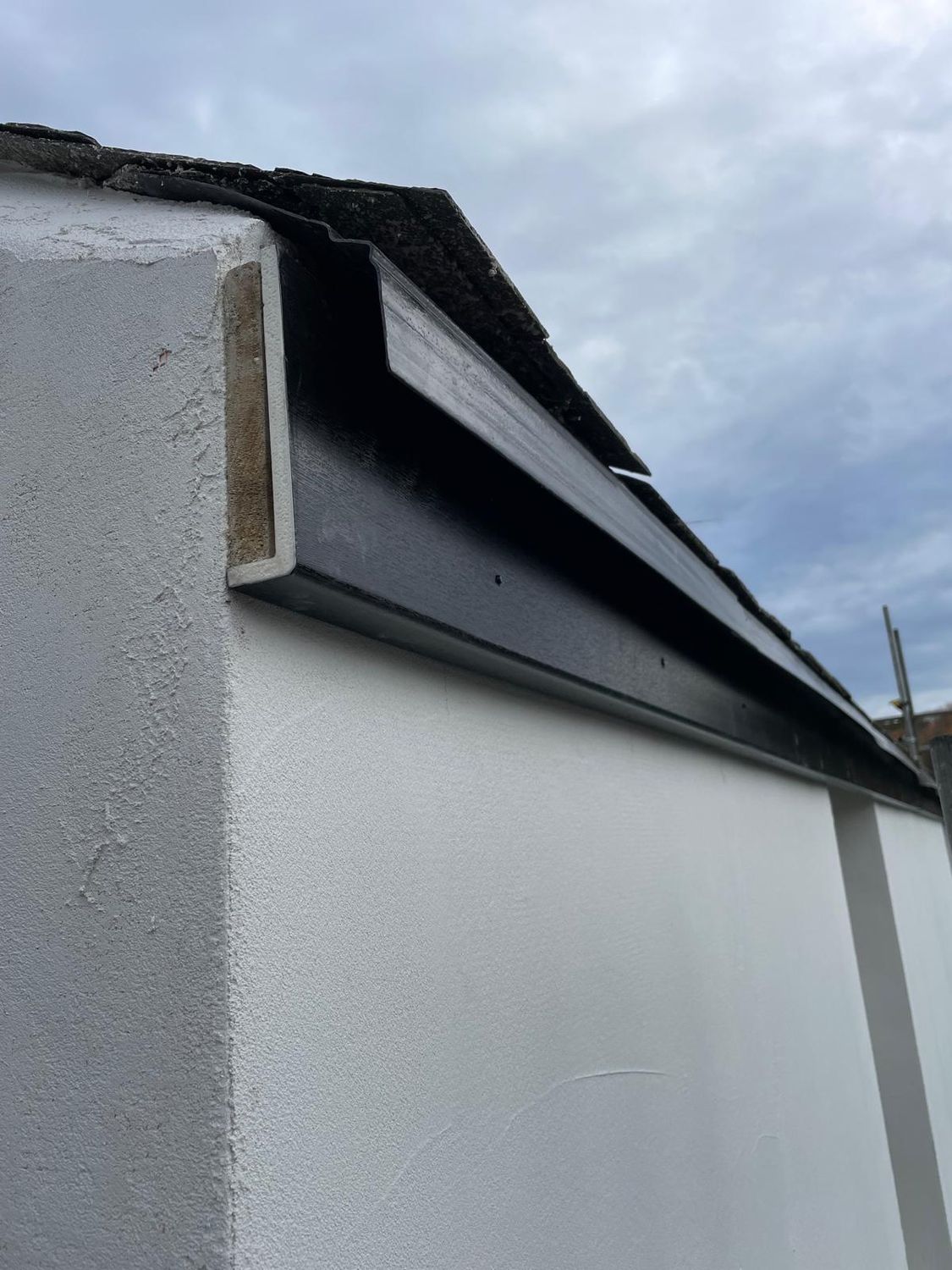

Detailing at the top - fascia board fitted

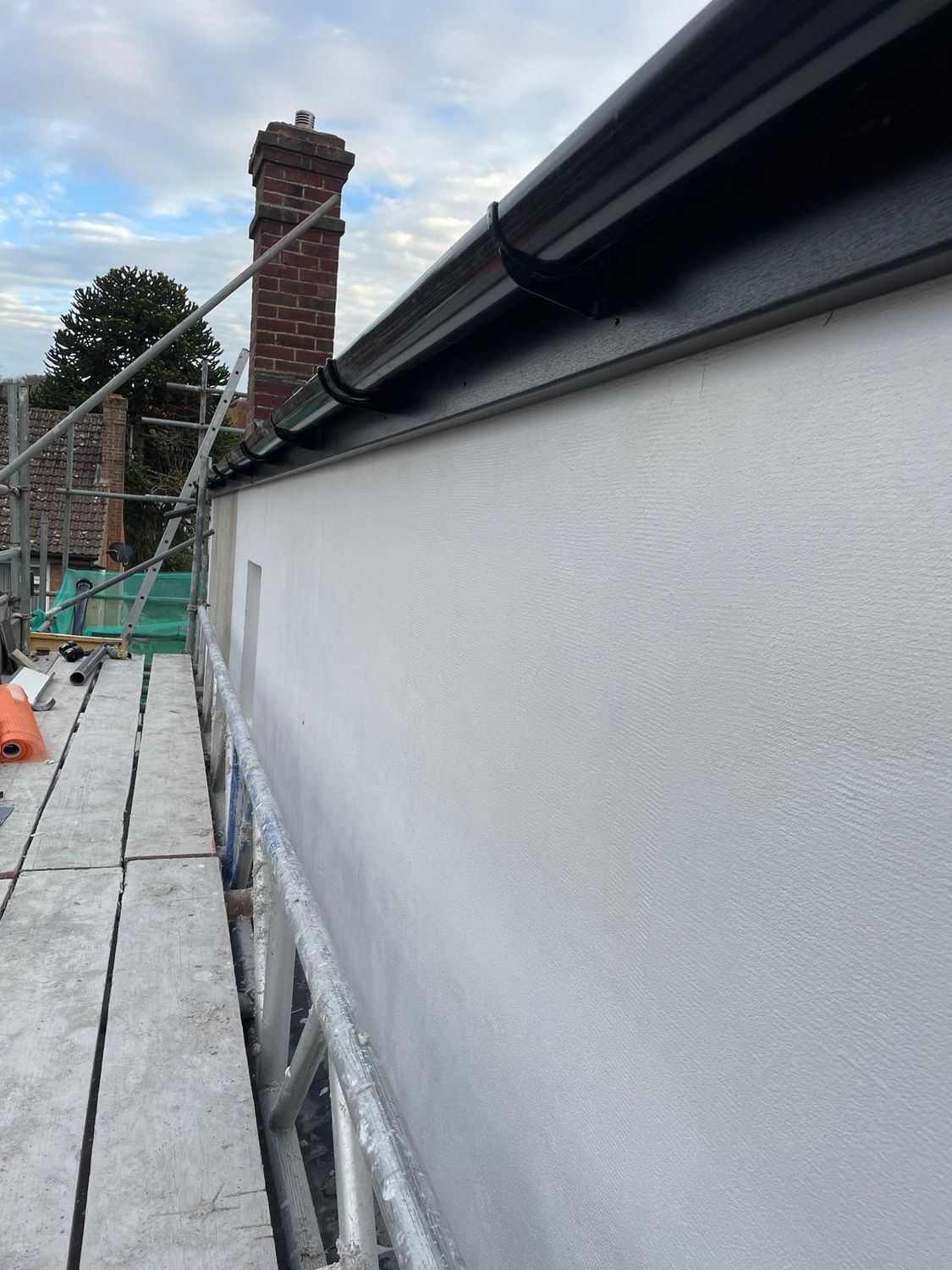

Gutters re-fitted onto new fascia board

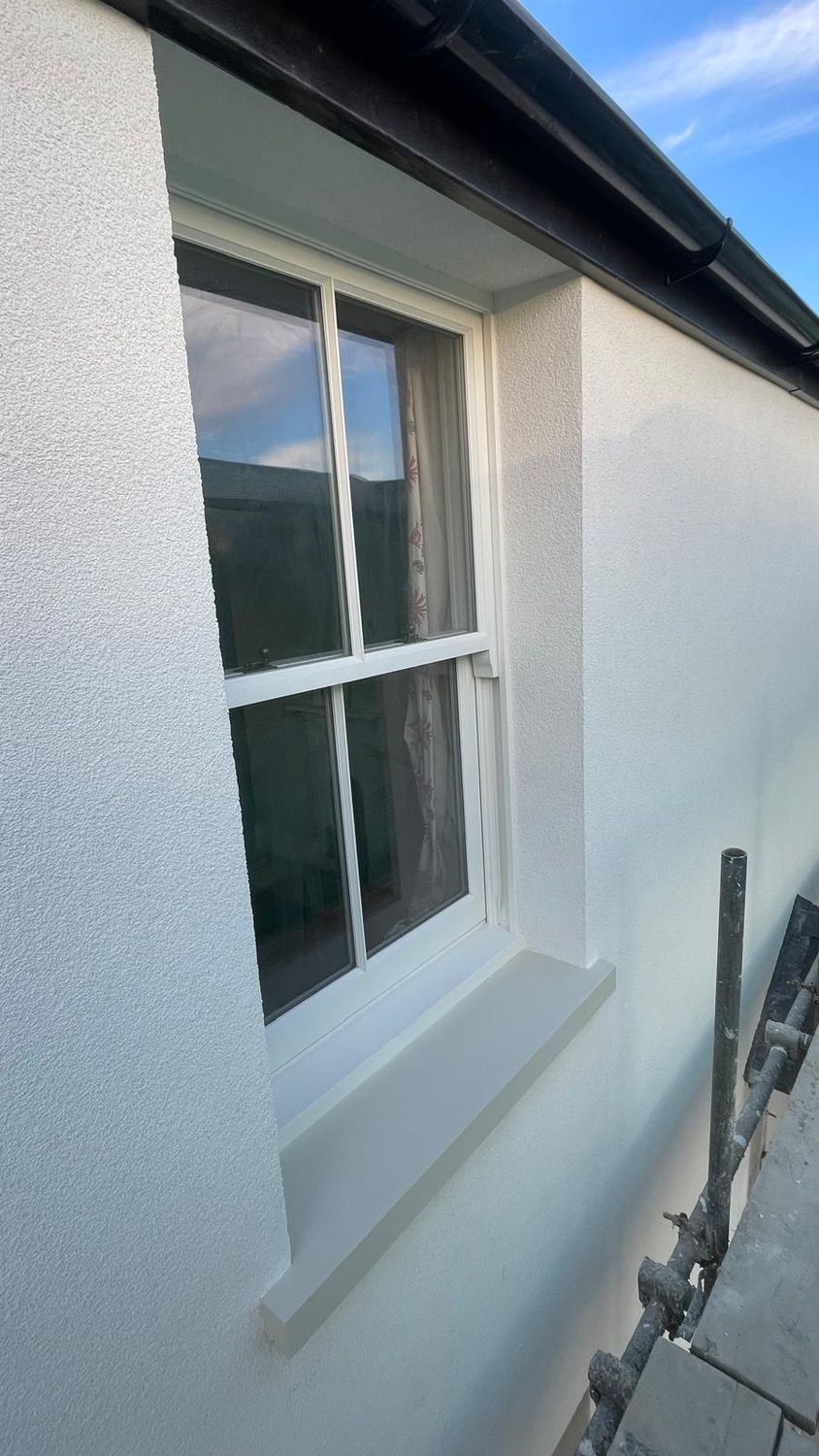

New window sills painted, gutters re-fitted

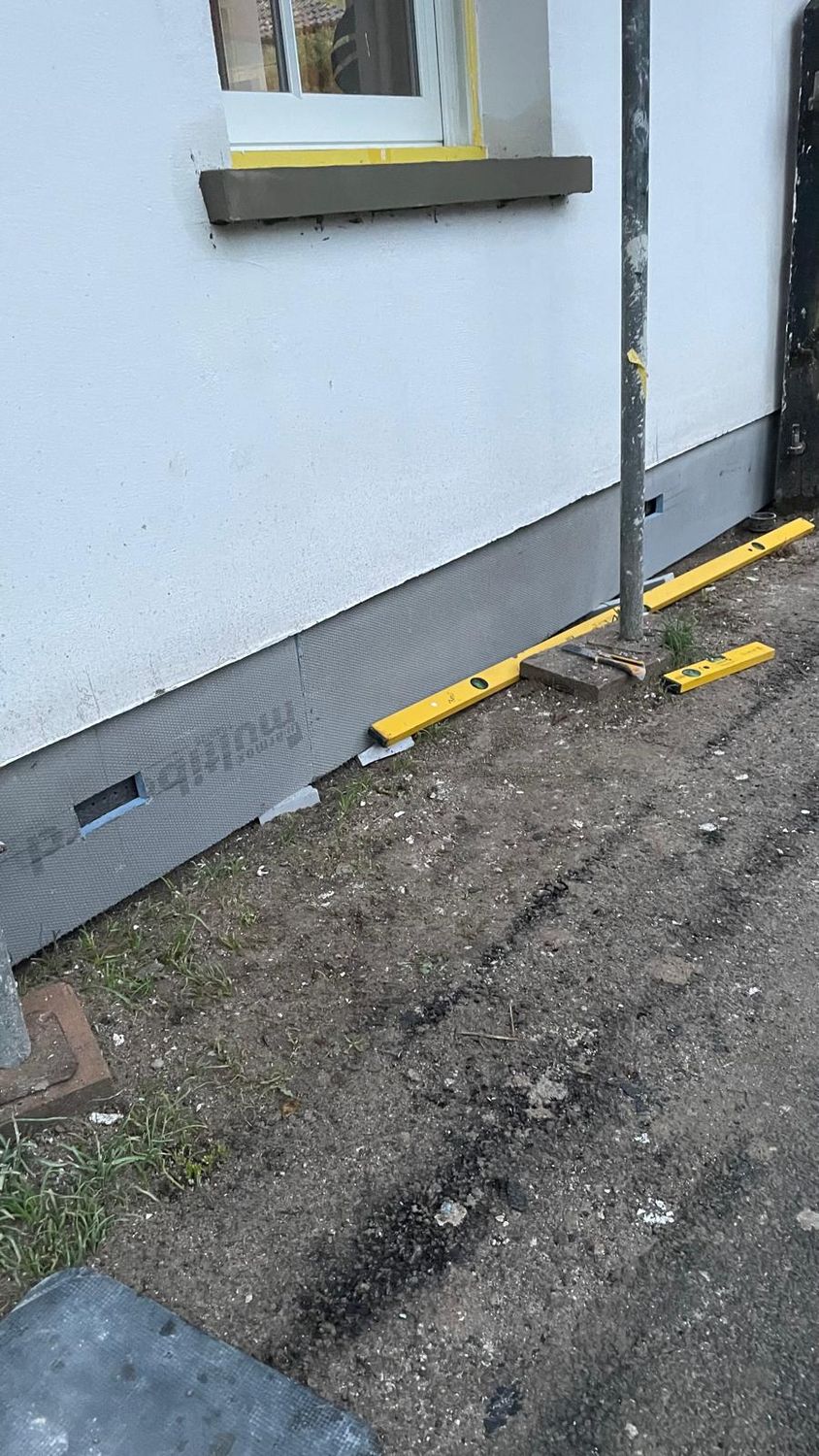

New plinth insulation being installed

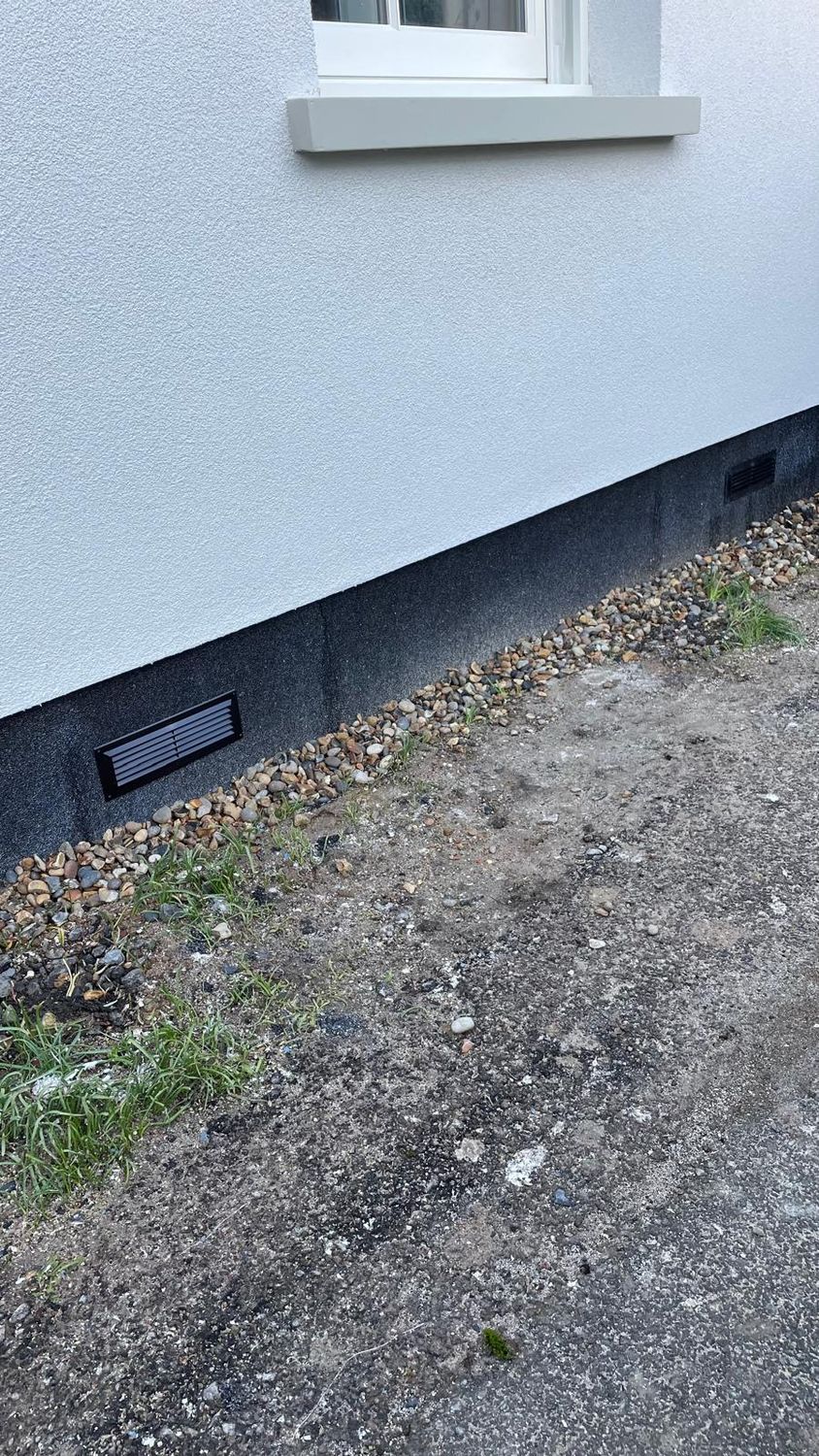

Completed plinth insulation with grey Mosaic render and ventilation grilles

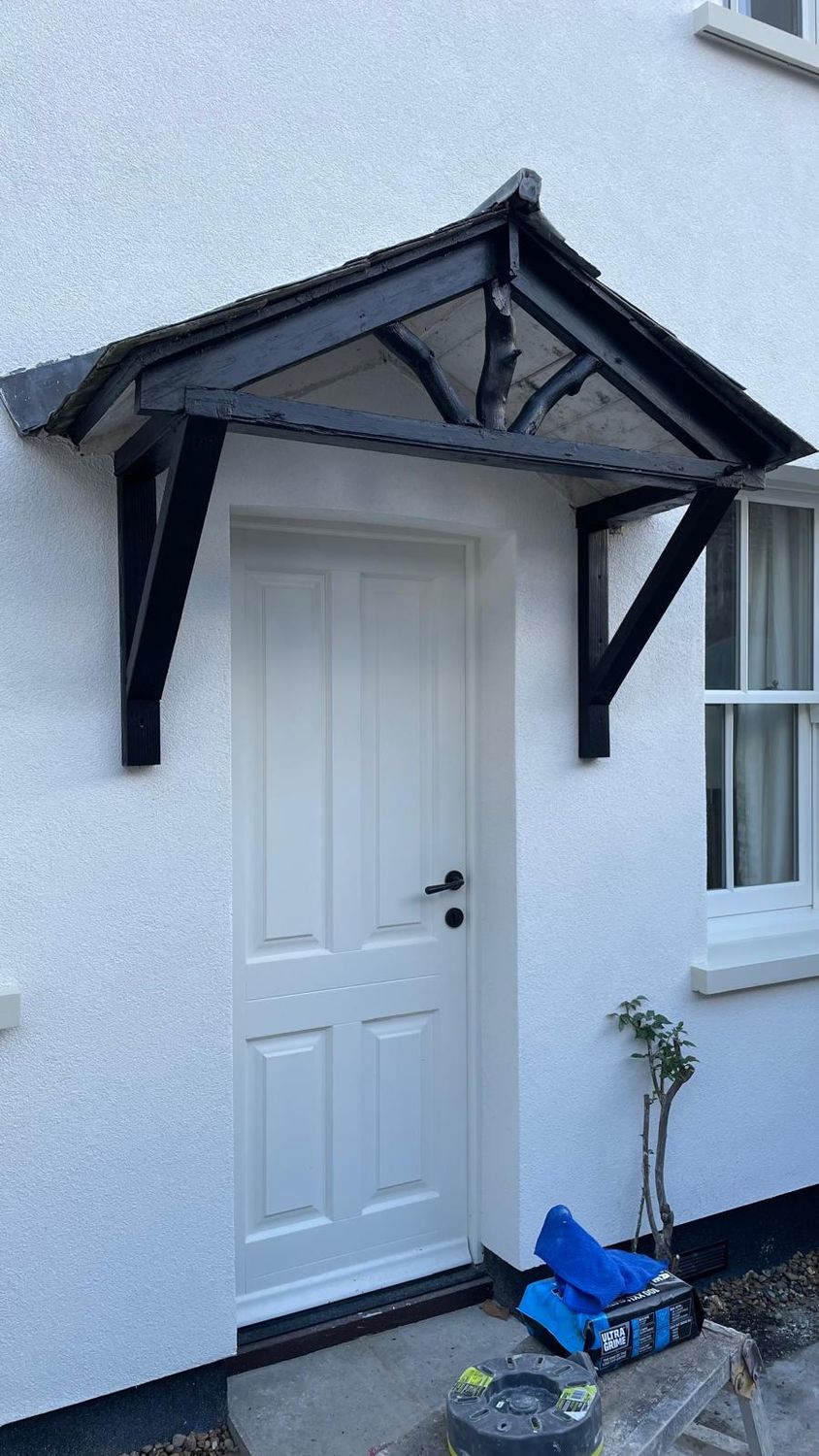

Decorative timber for side entrance porch roof reinstalled
If your solid walls are cold and you want the insulation on the outside without losing the shape of the house, this is what that looks like.
